Part Number: LMH6672
Description: The LMH6672 is a low cost, dual high speed op amp capable of driving signals to within 1V of the power...
- Table of contents:
LMH6672
-
Suppliers
DataSheet
General Description
LMH6672 General Description
The LMH6672 is a low cost, dual high speed op amp capable of driving signals to within 1V of the power supply rails. It features the high output drive with low distortion required for the demanding application of a single supply xDSL line driver. When connected as a differential output driver, the LMH6672 can drive a 50 load to 16.8VPP swing with only −93dBc distortion, fully supporting the peak upstream power levels for upstream full-rate ADSL. The LMH6672 is fully specified for operation with 5V and 12V supplies. Ideal for PCI modem cards and xDSL modems.
LMH6672 Maximum Ratings
ESD Tolerance ..................................................(Note 2)
Human Body Model .................................................2kV
Machine Model ......................................................200V
VIN Differential ...................................................±1.2V
Output Short Circuit Duration ..........................(Note 2)
Supply Voltage (V+ − V−) ....................................13.2V
Voltage at Input/Output pins ........V+ +0.8V, V− −0.8V
Storage Temperature Range ..............−65 to +150
Junction Temperature .........................+150 (Note 4)
Soldering Information
Infrared or Convection (20 sec) ..........................235
Wave Soldering (10 sec) .....................................260
Human Body Model .................................................2kV
Machine Model ......................................................200V
VIN Differential ...................................................±1.2V
Output Short Circuit Duration ..........................(Note 2)
Supply Voltage (V+ − V−) ....................................13.2V
Voltage at Input/Output pins ........V+ +0.8V, V− −0.8V
Storage Temperature Range ..............−65 to +150
Junction Temperature .........................+150 (Note 4)
Soldering Information
Infrared or Convection (20 sec) ..........................235
Wave Soldering (10 sec) .....................................260
LMH6672 Features
`High Output Drive
19.2VPP differential output voltage, RL = 50
9.6VPP single-ended output voltage, RL = 25
`High Output Current
±200mA @ VO = 9VPP, VS = 12V
`Low Distortion
93dB SFDR @ 100KHz, VO = 8.4VPP, RL = 25
92dB SFDR @ 1MHz, VO = 2VPP, RL = 100
`High Speed
130MHz 3dB bandwidth (G = 2)
160V/µs slew rate
`Low Noise
4.5nV/Hz : input noise voltage
1.7pA/Hz : input noise current
`Low supply current: 6.2mA/amp
`Single-supply operation: 5V to 12V
`Available in 8-pin SOIC, PSOP and LLP
19.2VPP differential output voltage, RL = 50
9.6VPP single-ended output voltage, RL = 25
`High Output Current
±200mA @ VO = 9VPP, VS = 12V
`Low Distortion
93dB SFDR @ 100KHz, VO = 8.4VPP, RL = 25
92dB SFDR @ 1MHz, VO = 2VPP, RL = 100
`High Speed
130MHz 3dB bandwidth (G = 2)
160V/µs slew rate
`Low Noise
4.5nV/Hz : input noise voltage
1.7pA/Hz : input noise current
`Low supply current: 6.2mA/amp
`Single-supply operation: 5V to 12V
`Available in 8-pin SOIC, PSOP and LLP
LMH6672 Typical Application
·ADSL PCI modem cards
·xDSL external modems
·Line drivers
LMH6672 Connection Diagram
LMH6672
PDF/DataSheet Download
- Datasheet: LMH6672
- File Size: 614271 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LMH0002
- NATIONAL
- SMPTE 292M / 259M Serial Digital Cable Driver
- 1190577 KB
- ·LMH0034
- 525819 KB
- ·LMH1251
- NSC [National Semiconductor]
- YPBPR to RGB Decoder and 2:1 Video Switch
- 629265 KB
- ·LMH1251MT
- NSC [National Semiconductor]
- YPBPR to RGB Decoder and 2:1 Video Switch
- 629265 KB
- ·LMH1251MTX
- NSC [National Semiconductor]
- YPBPR to RGB Decoder and 2:1 Video Switch
- 629265 KB
- ·LMH6502
- NSC [National Semiconductor]
- Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
- 963984 KB
- ·LMH6502MA
- NSC [National Semiconductor]
- Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
- 963984 KB
- ·LMH6502MAX
- NSC [National Semiconductor]
- Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
- 963984 KB
LMH6672 Relative Products
LMH6658MMX/NOPB
IC OP AMP DUAL 270MHZ 8-MSOP

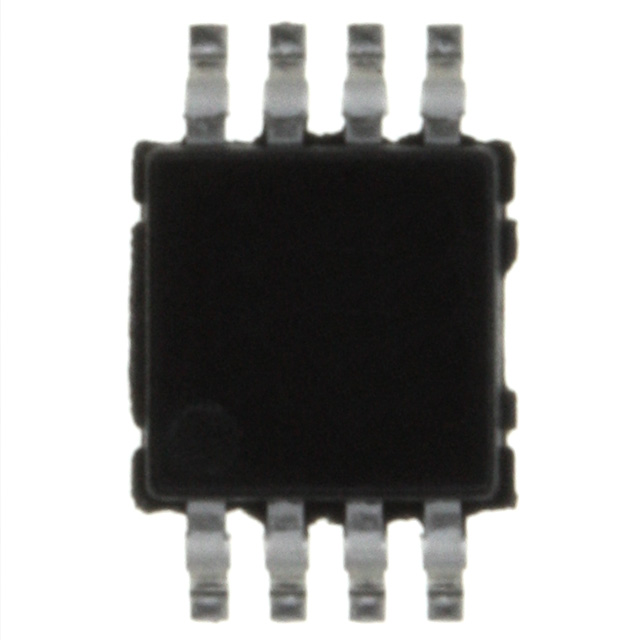

LMH6658MM
