Part Number: LMH7324









Description: The LMH7324 is a quad comparator with 700 ps propagation delay and low dispersion of less then 20 ps for a supply volta...


Urgent Purchase

LMH7324 General Description


The LMH7324 is a quad comparator with 700 ps propagation delay and low dispersion of less then 20 ps for a supply voltage  of 5V. The input voltage range extends from VCC−2V to VEE−200 mV The devices can be operated from a wide supply voltage range of 5V to 12V.

The outputs of the LMH7324 are RSPECL compatible. The LMH7324 is available in a 32-Pin LLP package.

LMH7324 Maximum Ratings

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
ESD Tolerance (Note 2)
    Human Body Model                           2.5 kV
    Machine Model                                    250V
Output Short Circuit Duration (Notes 3, 4)
Supply Voltages (V+ V−)                    13.2V
Voltage at Input/Output Pins                  ±13V
Soldering Information
    Infrared or Convection (20 sec.)      235°C
    Wave Soldering (10 sec.)                 260°C
Storage Temperature Range −65°C to +150°C
Junction Temperature (Note 3)              +150°C

LMH7324 Features

(VCCI = VCCO = +5V, VEE = 0V.)
Propagation delay          700 ps
Overdrive dispersion        20 ps
Fast rise and fall times   150 ps
Supply range            5V to 12V
Input common mode range extends 200 mV below negative rail
RSPECL outputs

LMH7324 Typical Application

Digital receivers
High speed signal restoration
Zero-crossing detectors
High speed sampling
Window comparators
High speed signal triggering

LMH7324 datasheet

LMH7324
PDF/DataSheet Download

Find LMH7324 Suppliers

  • ·LMH0002
  • NATIONAL
  • SMPTE 292M / 259M Serial Digital Cable Driver
  • 1190577 KB
  • LMH0002 Datasheet Download
  • ·LMH0034
  •
  •
  • 525819 KB
  • LMH0034 Datasheet Download
  • ·LMH1251
  • NSC [National Semiconductor]
  • YPBPR to RGB Decoder and 2:1 Video Switch
  • 629265 KB
  • LMH1251 Datasheet Download
  • ·LMH1251MT
  • NSC [National Semiconductor]
  • YPBPR to RGB Decoder and 2:1 Video Switch
  • 629265 KB
  • LMH1251MT Datasheet Download
  • ·LMH1251MTX
  • NSC [National Semiconductor]
  • YPBPR to RGB Decoder and 2:1 Video Switch
  • 629265 KB
  • LMH1251MTX Datasheet Download
  • ·LMH6502
  • NSC [National Semiconductor]
  • Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
  • 963984 KB
  • LMH6502 Datasheet Download
  • ·LMH6502MA
  • NSC [National Semiconductor]
  • Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
  • 963984 KB
  • LMH6502MA Datasheet Download
  • ·LMH6502MAX
  • NSC [National Semiconductor]
  • Wideband, Low Power, Linear-in-dB Variable Gain Amplifier
  • 963984 KB
  • LMH6502MAX Datasheet Download

Related Part Number

LMH7324 Relative Products

  • LMH7322SQX/NOPB

    LMH7322SQX/NOPB

    IC COMP DUAL 700PS RSPECL 24-LLP

  • LMH7322SQE/NOPB

    LMH7322SQE/NOPB

    IC COMP DUAL 700PS RSPECL 24-LLP

  • LMH7322SQ/NOPB

    LMH7322SQ/NOPB

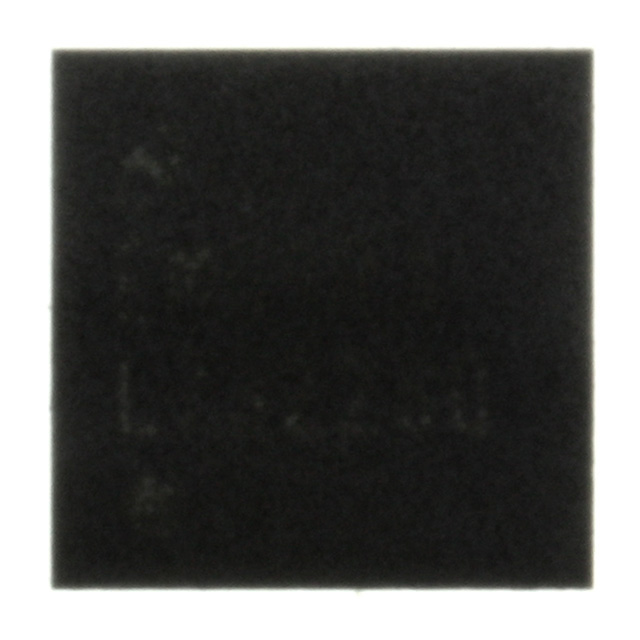

    IC COMPARATOR DUAL 700PS 24-LLP
