LMV1089

PinoutSpecificationsSNR65 dBSupply Min2.7 VoltSupply Max5.5 VoltTemperature Min-40 deg CTemperature Max+85 deg CPowerWiseYes View Using CatalogDescriptionThe LMV1089 is a fully analog dual differential input, differential output, microphone array amplifier designed to reduce background acoustic no...

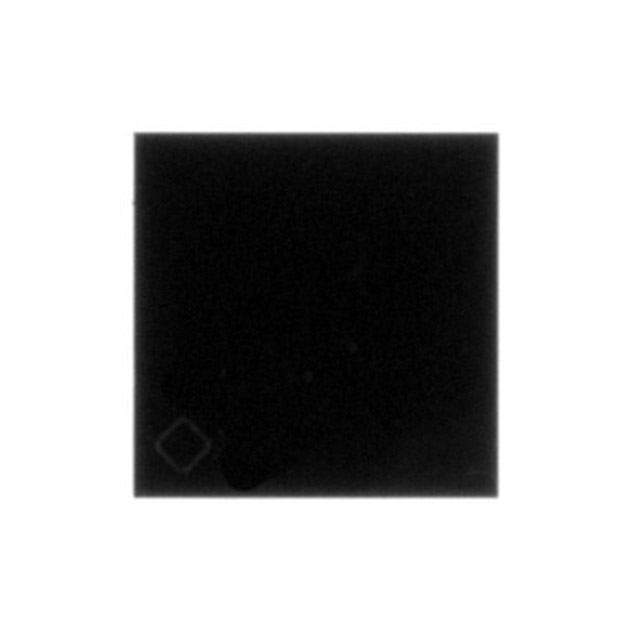

product image

LMV1089 Picture
SeekIC No. : 004397208 Detail

LMV1089: PinoutSpecificationsSNR65 dBSupply Min2.7 VoltSupply Max5.5 VoltTemperature Min-40 deg CTemperature Max+85 deg CPowerWiseYes View Using CatalogDescriptionThe LMV1089 is a fully analog dual different...

floor Price/Ceiling Price

Part Number:
LMV1089
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

SNR65 dB
Supply Min2.7 Volt
Supply Max5.5 Volt
Temperature Min-40 deg C
Temperature Max+85 deg C
PowerWiseYes
View Using Catalog



Description

The LMV1089 is a fully analog dual differential input, differential output, microphone array amplifier designed to reduce background acoustic noise, while delivering superb speech clarity in voice communication applications.

The LMV1089 preserves near-field voice signals within 4cm of the microphones while rejecting far-field acoustic noise greater than 50cm from the microphones. Up to 20dB of far-field rejection is possible in a properly configured and calibrated system.

Part of the Powerwise™ family of energy efficient solutions, the LMV1089 consumes only 1.1mA of supply current providing superior performance over DSP solutions consuming greater than ten times the power.

A quick calibration during the manufacturing test process of the product containing the LMV1089 compensates the entire microphone system. This calibration compensates for mismatch in microphone gain and frequency response, as well as acoustical path variances. The LMV1089 stores the calibration coefficients in the on-chip EEPROM. The calibration is initiated by an I 2C command or by a logic pin control.

The dual microphone inputs and the processed signal output are differential to provide excellent noise immunity. The microphones are biased with an internal low-noise bias supply.

Design Tools


Title Size in Kbytes Date
LMV1088 Software (Windows XP/2000) allows control of the LMV1088 device and its operating modes     View
LMV1088 Online Noise Reduction Demo     View
LMV1088 Evaluation Manual, Gerber and Software     View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Application Notes


Title Size in Kbytes Date
AN-1832: Application Note 1832 LMV1089 Noise Suppression Microphone Amplifier Demo Board User`s Guide 2467 Kbytes 17-Jun-09 Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
