LMV358

Features: 80Asupply current per channel1.2MHz gain bandwidth productOutput voltage range: 0.01Vto 2.69VInput voltage range: -0.25Vto +1.5V1.5V/s slew rateLMV321 directly replaces other industry standard LMV321 amplifiers; available in SC70-5 and SOT23-5 packagesLMV358 directly replaces other indus...

product image

LMV358 Picture
SeekIC No. : 004397247 Detail

LMV358: Features: 80Asupply current per channel1.2MHz gain bandwidth productOutput voltage range: 0.01Vto 2.69VInput voltage range: -0.25Vto +1.5V1.5V/s slew rateLMV321 directly replaces other industry stan...

floor Price/Ceiling Price

Part Number:
LMV358
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

80Asupply current per channel
1.2MHz gain bandwidth product
Output voltage range: 0.01Vto 2.69V
Input voltage range: -0.25Vto +1.5V
1.5V/s slew rate
LMV321 directly replaces other industry standard LMV321 amplifiers; available in SC70-5 and SOT23-5 packages
LMV358 directly replaces other industry standard LMV358 amplifiers; available in MSOP-8 and SOIC-8 packages
LMV324 directly replaces other industry standard LMV324 amplifiers; available in TSSOP-14 and SOIC-14 packages
Fully specified at +2.7Vand +5Vsupplies
Operating temperature range: -40 to +125





Application

Low cost general purpose applications
Cellular phones
Personal data assistants
A/D buffer
DSPinterface
Smart card readers
Portable test instruments
Keyless entry
Infrared receivers for remote controls
Telephone systems
Audio applications
Digital still cameras
Hard disk drives
MP3 players





Pinout

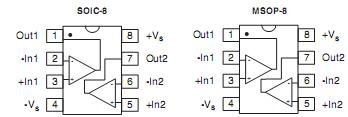

  Connection Diagram




Specifications

Supply Min 2.7 Volt
Supply Max 5.5 Volt
Gain Bandwidth 1 MHz
Slew Rate 1 Volts/usec
Offset Voltage max, 25C 7 mV
Max Input Bias Current 500 nA
Input OutputType Vcm to V-, R-R Out
Supply Current Per Channel 0.105 mA
PowerWise Rating 2 105 uA/MHz
Channels 2 Channels
Output Current 60 mA
Shut down No
Special Features Undefined
Voltage Noise 39 nV/root(Hz)
Temperature Max 85 deg C
Temperature Min -40 deg C
Function Op Amp
View Using Catalog


Parameter Min. Max. Unit
Supply Voltages 0 +6 V
Maximum Junction Temperature - +170
Storage Temperature Range -65 +150
Lead Temperature, 10 seconds - +260
Input Voltage Range -VS-0.5 +VS +0.5 V





Description

The LMV358/LMV324 are low voltage (2.75.5V) versions of the dual and quad commodity op amps, LM358/LMV324, which currently operate at 530V. The LMV321 is the single version.

The LMV321/LMV358/LMV324 are the most cost effective solutions for the applications where low voltage operation, space saving and low price are needed. They offer specifications that meet or exceed the familiar LM358/LMV324. The LMV321/LMV358/LMV324 have rail-to-rail output swing capability and the input common-mode voltage range includes ground. They all exhibit excellent speed to power ratio, achieving 1 MHz of bandwidth and 1 V/µs of slew rate with low supply current.

The LMV321 is available in the space saving 5-Pin SC70, which is approximately half the size of the 5-Pin SOT23. The small package saves space on PC boards, and enables the design of small portable electronic devices. It also allows the designer to place the device closer to the signal source to reduce noise pickup and increase signal integrity.

The chips are built with National's advanced submicron silicon-gate BiCMOS process. The LMV321/LMV358/LMV324 have bipolar input and output stages for improved noise performance and higher output current drive.

Reliability Metrics


Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
LMV358 MDA CS080 0 29095 0 0 2720500 2 771949303
LMV358M CS080 0 29095 0 0 2720500 2 771949303
LMV358MM CS080 0 29095 0 0 2720500 2 771949303
LMV358MMX CS080 0 29095 0 0 2720500 2 771949303
LMV358MX CS080 0 29095 0 0 2720500 2 771949303

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Design Tools


Title Size in Kbytes Date
Amplifiers Selection Guide software for Windows 8 Kbytes 6-Mar-2007 View
LMV Qualification Package 3678 Kbytes 29-Sep-2000 View Online Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.






Customers Who Bought This Item Also Bought

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.
Computers, Office - Components, Accessories
Prototyping Products
DE1
Static Control, ESD, Clean Room Products
Cable Assemblies
Sensors, Transducers
Fans, Thermal Management
View more
