Part Number: LMV715
Description: The LMV710, LMV711 and LMV715 are BiCMOS opera-tional amplifiers with a CMOS input stage. These device...
- Table of contents:
LMV715
-
Suppliers
DataSheet
General Description
LMV715 General Description
The LMV710, LMV711 and LMV715 are BiCMOS opera-tional amplifiers with a CMOS input stage. These deviceshave greater than RR input common mode voltage range,rail-to-rail output and high output current drive. They offer abandwidth of 5MHz and a slew rate of 5V/µs.
On the LMV711/LMV715, a separate shutdown pin can beused to disable the device and reduces the supply current to0.2µA (typical). They also feature a turn on time of less than10µs. It is an ideal solution for power sensitive applications,such as cellular phone, pager, palm computer, etc. In addi-tion, once the LMV715 is in shutdown the output will be"Tri-stated".
The LMV710 is offered in the space saving SOT23-5 Tinypackage. The LMV711 and LMV715 are offered in the spacesaving SOT23-6 Tiny package.
The LMV710/711/715 are designed to meet the demands oflow power, low cost, and small size required by cellular phones and similar battery powered portable electronics.
LMV715 Maximum Ratings
ESD Tolerance (Note 2)
Machine Model 100V
Human Body Model 2000V
Differential Input Voltage ± Supply Voltage
Voltage at Input/Output Pin (V+) + 0.4V
(V−) − 0.4V
Supply Voltage (V+-V −) 5.5V
Output Short Circuit to V+ (Note 3)
Output Short Circuit to V − (Note 4)
Current at Input Pin ± 10mA
Mounting Temp.
Infrared or Convection (20 sec) 235˚C
Storage Temperature Range −65˚C to 150˚C
Junction Temperature(TJMAX) 150˚C
(Note 5)
Machine Model 100V
Human Body Model 2000V
Differential Input Voltage ± Supply Voltage
Voltage at Input/Output Pin (V+) + 0.4V
(V−) − 0.4V
Supply Voltage (V+-V −) 5.5V
Output Short Circuit to V+ (Note 3)
Output Short Circuit to V − (Note 4)
Current at Input Pin ± 10mA
Mounting Temp.
Infrared or Convection (20 sec) 235˚C
Storage Temperature Range −65˚C to 150˚C
Junction Temperature(TJMAX) 150˚C
(Note 5)
LMV715 Features
(For 5 Supply, Typical Unless Otherwise Noted).
Low offset voltage 3mV, max
Gain-bandwidth product 5MHz, typ
Slew rate 5V/µs, typ
Space saving packages SOT23-5 and SOT23-6
Turn on time from shutdown <10µs
Industrial temperature range −40˚C to +85˚C
Supply current in shutdown mode 0.2µA, typ
Guaranteed 2.7V and 5V Performance
Unity gain stable
Rail-to-rail input and output
Capable of driving 600Ω load
Low offset voltage 3mV, max
Gain-bandwidth product 5MHz, typ
Slew rate 5V/µs, typ
Space saving packages SOT23-5 and SOT23-6
Turn on time from shutdown <10µs
Industrial temperature range −40˚C to +85˚C
Supply current in shutdown mode 0.2µA, typ
Guaranteed 2.7V and 5V Performance
Unity gain stable
Rail-to-rail input and output
Capable of driving 600Ω load
LMV715 Typical Application
Wireless phones
GSM/TDMA/CDMA power amp control
AGC, RF power detector
Temperature compensation
Wireless LAN
Bluetooth
HomeRF
GSM/TDMA/CDMA power amp control
AGC, RF power detector
Temperature compensation
Wireless LAN
Bluetooth
HomeRF
LMV715
PDF/DataSheet Download
- Datasheet: LMV715
- File Size: 725558 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
- ·LMV101
- NSC [National Semiconductor]
- Fixed-Gain Amplifiers
- 788168 KB
- ·LMV1012
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012-07
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012-15
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012-20
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012-25
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012TP-07
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
- ·LMV1012TP-15
- NSC [National Semiconductor]
- Pre-Amplified IC’s for High Gain 2-Wire Microphones
- 509281 KB
LMV715 Relative Products
LMV712TLX/NOPB
IC OP AMP RRIO DUAL SD 10MCRSMD

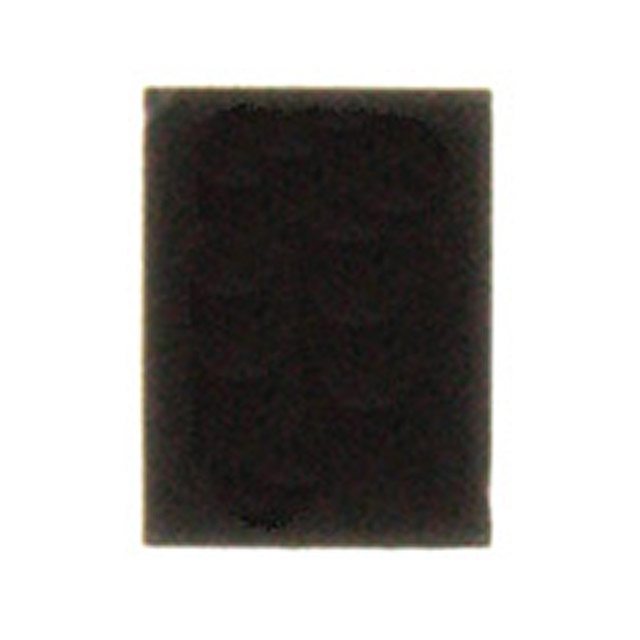

LMV712TL/NOPB
