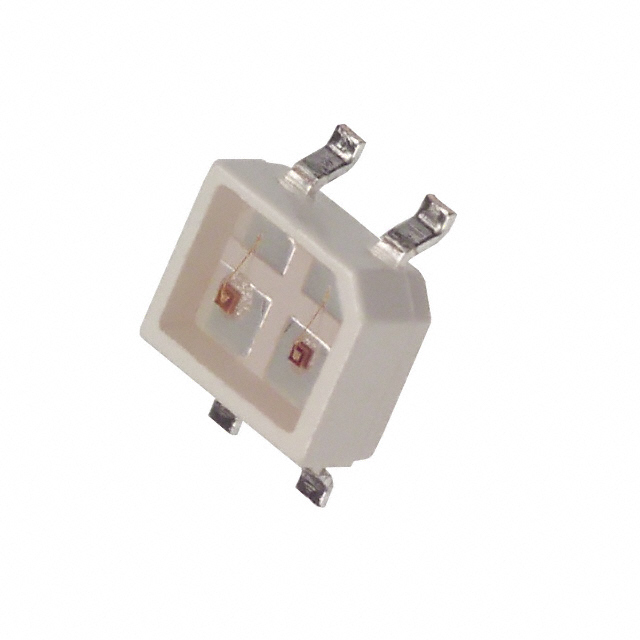

LN2162C13TR: LED RED/GREEN CHIP GULLWING

LN2162C13TR Data Sheet

Get Latest Price

Part Number:: LN2162C13TR
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LN212RP evaluate
LED RED DIFFUSED
LN213RPP evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C) Red 70...
LN2162C13 evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Green, Red	Millicandela Rating:	4mcd Green, 1.8mcd Red
Voltage - Forward (Vf) Typ:	2.05V Green, 2V Red	Current - Test:	10mA
Wavelength - Dominant:	-	Wavelength - Peak:	565nm, 650nm
Viewing Angle:	-	Lens Type:	Clear
Package / Case :	SOT-339	Lens Style/Size:	Rectangle with Flat Top, 2.7mm x 2.1mm
Package / Case:	4-SMD, Gull Wing	Size / Dimension:	3.40mm L x 2.10mm W
Height:	1.50mm	Mounting Type:	Surface Mount

Description

Series: -
Lens Type: Clear
Mounting Type: Surface Mount
Current - Test: 10mA
Wavelength - Dominant: -
Viewing Angle: -
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Packaging: Cut Tape (CT)
Height: 1.50mm
Color: Green, Red
Package / Case: 4-SMD, Gull Wing
Lens Style/Size: Rectangle with Flat Top, 2.7mm x 2.1mm
Wavelength - Peak: 565nm, 650nm
Size / Dimension: 3.40mm L x 2.10mm W
Millicandela Rating: 4mcd Green, 1.8mcd Red
Voltage - Forward (Vf) Typ: 2.05V Green, 2V Red

Parameters:

Technical/Catalog Information	LN2162C13TR
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Green, Red
Lens Style/Size	Rectangle, 2.7mm x 2.1mm
Millicandela Rating	4mcd Green, 1.8mcd Red
Voltage - Forward (Vf) Typ	2.05V Green, 2.0V Red
Wavelength - Dominant	565nm, 650nm
Wavelength - Peak	565nm, 650nm
Current - Test	10mA
Viewing Angle	135°
Lens Type	Clear
Luminous Flux	16 mlm Green, 7 mlm Red
Package / Case	3.4mm x 2.7mm x 1.5mm
Mounting Type	Surface Mount
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN2162C13TR LN2162C13TR P507CT ND P507CTND P507CT
