LN31GCPH, US $ .06-.29, LN31GCPH DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003614023 Detail

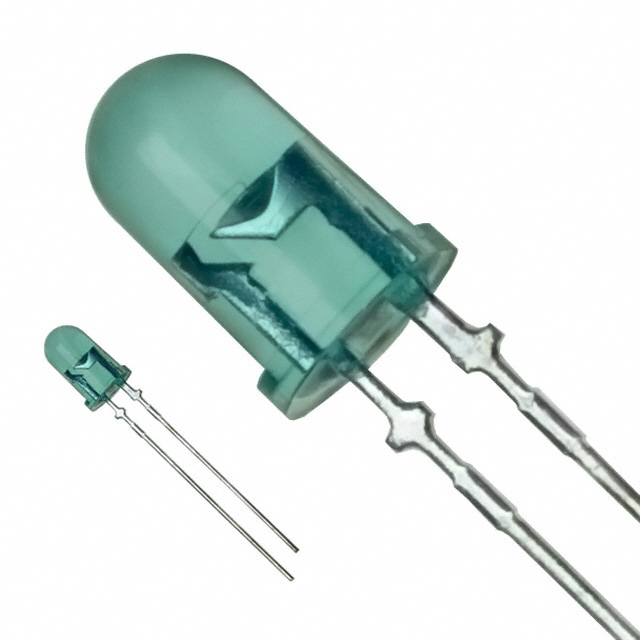

LN31GCPH: LED GREEN CLEAR 5MM ROUND

LN31GCPH Data Sheet

US $ .06~.29 / Piece | Get Latest Price

Part Number:: LN31GCPH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.29
$.19
$.15
$.13
$.11
$.08
$.07
$.07
$.06

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Green	Millicandela Rating:	20mcd
Voltage - Forward (Vf) Typ:	2.2V	Current - Test:	20mA
Wavelength - Dominant:	-	Wavelength - Peak:	565nm
Viewing Angle:	-	Lens Type:	-
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial	Size / Dimension:	-
Height:	8.65mm	Mounting Type:	Through Hole

Description

Series: -
Color: Green
Current - Test: 20mA
Voltage - Forward (Vf) Typ: 2.2V
Wavelength - Peak: 565nm
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Size / Dimension: -
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 20mcd
Height: 8.65mm

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr(°C)	T_stg(°C)
Green	90	30	150	4	-25 ~ +80	-30 ~ +100

I_FP duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec

Parameters:

Technical/Catalog Information	LN31GCPH
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Green
Lens Style/Size	Round, 5mm, T-1 3/4
Millicandela Rating	20mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	565nm
Wavelength - Peak	565nm
Current - Test	20mA
Viewing Angle	35°
Lens Type	Clear, Green Tinted
Luminous Flux	6 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN31GCPH LN31GCPH P584 ND P584ND P584
