SeekIC No. : 003613984 Detail

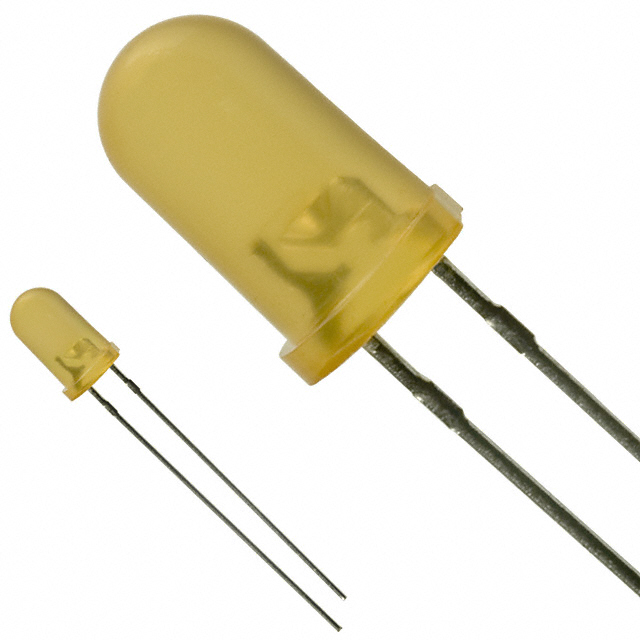

LN41YCPH: LED AMBER CLEAR 5MM ROUND

LN41YCPH Data Sheet

US $ .06~.29 / Piece | Get Latest Price

Part Number:: LN41YCPH
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.29
$.19
$.16
$.13
$.11
$.08
$.07
$.07
$.06

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LN413YPP evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr(°C) Tstg(°C) Red 70...
LN41YCPHL evaluate
LED AMBER CLEAR ROUND
LN41YPH evaluate
US $.06 - .28 / Piece

LED AMBER DIFFUSED ROUND

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Amber	Millicandela Rating:	20mcd
Voltage - Forward (Vf) Typ:	2.2V	Current - Test:	20mA
Wavelength - Dominant:	-	Wavelength - Peak:	590nm
Viewing Angle:	-	Lens Type:	-
Package / Case :	Micro	Lens Style/Size:	Round with Domed Top, 5mm, T-1 3/4
Package / Case:	Radial	Size / Dimension:	-
Height:	8.65mm	Mounting Type:	Through Hole

Description

Series: -
Current - Test: 20mA
Voltage - Forward (Vf) Typ: 2.2V
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Size / Dimension: -
Package / Case: Radial
Mounting Type: Through Hole
Packaging: Bulk
Lens Style/Size: Round with Domed Top, 5mm, T-1 3/4
Color: Amber
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Millicandela Rating: 20mcd
Wavelength - Peak: 590nm
Height: 8.65mm

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr(°C)	T_stg(°C)
Amber	90	30	150	4	-25 ~ +85	-30 ~ +100

I_FP duty 10% Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec

Parameters:

Technical/Catalog Information	LN41YCPH
Vendor	Panasonic - SSG
Category	Optoelectronics
Color	Amber
Lens Style/Size	Round, 5mm, T-1 3/4
Millicandela Rating	20mcd
Voltage - Forward (Vf) Typ	2.2V
Wavelength - Dominant	590nm
Wavelength - Peak	590nm
Current - Test	20mA
Viewing Angle	35°
Lens Type	Clear, Amber Tinted
Luminous Flux	6 mlm
Package / Case	Radial
Mounting Type	Through Hole
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN41YCPH LN41YCPH P586 ND P586ND P586
