LN65, US $ .39-.96, LN65 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003611940 Detail

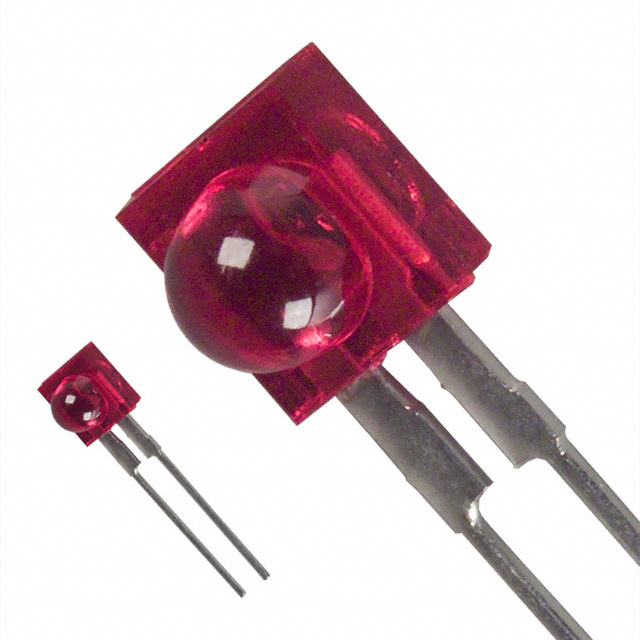

LN65: IR LED 950NM 35 DEG SIDE VIEW

LN65 Data Sheet

US $ .39~.96 / Piece | Get Latest Price

Part Number:: LN65
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~250
250~500
500~1000
1000~2500
2500~5000
5000~10000

Unit Price
$.96
$.78
$.7
$.62
$.54
$.45
$.42
$.4
$.39

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Current - DC Forward (If):	100mA	Radiant Intensity (Ie) Min @ If:	-
Wavelength:	950nm	Voltage - Forward (Vf) Typ:	1.3V
Viewing Angle:	70°	Maximum Power Dissipation :	568 mW
Orientation:	Side View	Mounting Type:	Through Hole
Package / Case:	Radial

Description

Series: -
Current - DC Forward (If): 100mA
Wavelength: 950nm
Voltage - Forward (Vf) Typ: 1.3V
Radiant Intensity (Ie) Min @ If: -
Packaging: -
Mounting Type: Through Hole
Orientation: Side View
Package / Case: Radial
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Viewing Angle: 70°

Features:

·High-power output, high-efficiency : PO = 5.5 mW (typ.)
·Good radiant power output linearity with respect to input current
·Suited for use in high-speed modulation
·Infrared light emission close to monochromatic light : lP = 950 nm (typ.)

Specifications

Parameter	Symbol	Ratings	Unit
Power dissipation	PD	160	mW
Forward current (DC)	I_F	100	mA
Pulse forward current	I_FP*	1.5	A
Reverse voltage (DC)	V_R	3	V
Operating ambient temperature	T_opr	25 to +85
Storage temperature	T_stg	40 to +100

Parameters:

Technical/Catalog Information	LN65
Vendor	Panasonic - SSG
Category	Optoelectronics
Voltage - Forward (Vf) Typ	1.3V
Current - DC Forward (If)	100mA
Wavelength	950nm
Viewing Angle	70°
Radiant Intensity (Ie) Min @ If	-
Mounting Type	Through Hole
Package / Case	Radial
Orientation	Side View
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LN65 LN65
