LNBEH21

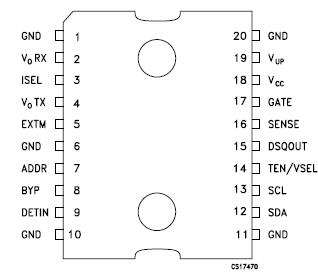

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	DC Input Voltage	-0.3 to 16	V
VUP	DC Input Voltage	-03 to 25	V
IO	Output Current	Internally Limited	mA
VOTX/RX	DC Output Pin Voltage	-0.3 to 25	V
VI	Logic Input Voltage (SDA, SCL, DSQIN)	-0.3 to 22	V
VDETIN	Detector Input Signal Amplitude	0.3 to 7	VPP
VOH	Logic High Output Voltage (DSQOUT)	-0.3 to 7	V
IGATE	Gate Current	± 400	mA
VSENSE	Current Sense Voltage	-0.3 to 1	V
VADDRESS	Address Pin Voltage	-0.3 to 7	V
Tstg	Storage Temperature Range	-40 to +150
Top	Operating Junction Temperature Range	40 to +125

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation uner these condition is not implied.


Description

Intended for analog and digital satellite STB receivers/SatTV, sets/PC cards, the LNBEH21 is a monolithic voltage regulator and interface IC, assembled in POWER SO-20, specifically designed to provide the 13/18V power supply and the 22KHz tone signalling to the LNB downconverter in the antenna or to the multiswitch box. The LNBEH21 supports both methods of communication currently used, 13/18V Control Word Communication Mode and DiSEqCTM communication. In this application field, it offers a complete solution with extremely low component count, low power dissipation together with simple design and I2CTM standard interfacing.
