LNJ115W8ARA

LED GREEN/SOFT ORANGE TSS TYPE

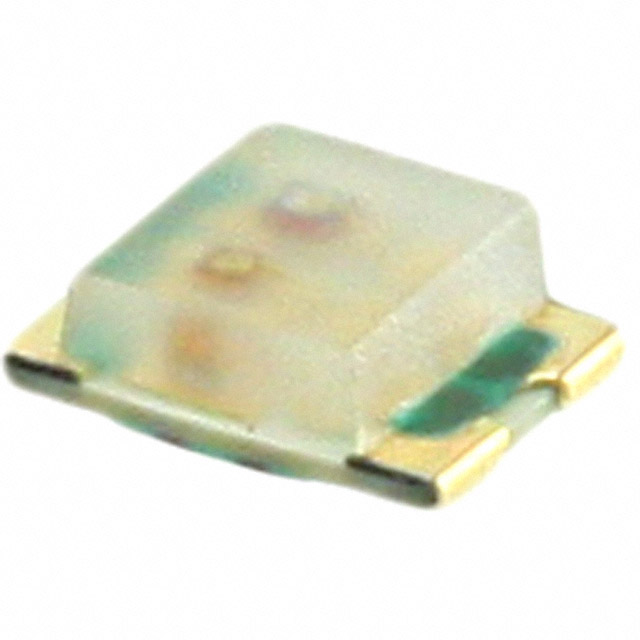

product image

LNJ115W8ARA Picture
See larger image
SeekIC No. : 003613501 Detail

LNJ115W8ARA: LED GREEN/SOFT ORANGE TSS TYPE

LNJ115W8ARA Data Sheet

floor Price/Ceiling Price

US $ .12~.34 / Piece | Get Latest Price
Part Number:
LNJ115W8ARA
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • 250~500
  • 500~1000
  • Unit Price
  • $.34
  • $.24
  • $.2
  • $.18
  • $.15
  • $.12
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Panasonic Electronic Components - Semiconductor Products
Color: Green, Orange Millicandela Rating: 5mcd Green, 1mcd Orange
Voltage - Forward (Vf) Typ: 2.03V Green, 1.93V Orange Current - Test: 10mA
Wavelength - Dominant: - Supply Current (Max) : 0.0023 mA
Wavelength - Peak: 565nm, 630nm Viewing Angle: -
Lens Type: - Lens Style/Size: Rectangle with Flat Top, 1.25mm x 1.1mm
Package / Case: 0605 (1613 Metric) Size / Dimension: 1.60mm L x 1.25mm W
Height: 0.55mm Mounting Type: Surface Mount

Description

Series: -
Mounting Type: Surface Mount
Packaging: Cut Tape (CT)Alternate Packaging
Current - Test: 10mA
Height: 0.55mm
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Wavelength - Peak: 565nm, 630nm
Package / Case: 0605 (1613 Metric)
Color: Green, Orange
Lens Style/Size: Rectangle with Flat Top, 1.25mm x 1.1mm
Size / Dimension: 1.60mm L x 1.25mm W
Millicandela Rating: 5mcd Green, 1mcd Orange
Voltage - Forward (Vf) Typ: 2.03V Green, 1.93V Orange


Specifications

Lighting Color

PD(mW)

IF(mA)

IFP(mA)*

VR(V)

Topr( )

Tstg( )

Green

60

20

60

4

-30 ~ +85

-40 ~ +100

Orange

60

20

60

3

-30 ~ +85

-40 ~ +100

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec


Parameters:

Technical/Catalog InformationLNJ115W8ARA
VendorPanasonic - SSG (VA)
CategoryOptoelectronics
ColorGreen, Orange
Lens Style/SizeRectangle, 1.25mm x 1.1mm
Millicandela Rating5mcd Green, 1mcd Orange
Voltage - Forward (Vf) Typ2.0V Green, 1.9V Orange
Wavelength - Dominant565nm, 630nm
Wavelength - Peak565nm, 630nm
Current - Test10mA
Viewing Angle140°
Lens TypeDiffused, White
Luminous Flux21 mlm Green, 4 mlm Orange
Package / Case0605 (1513 metric)
Mounting TypeSurface Mount
PackagingDigi-Reel?
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names LNJ115W8ARA
LNJ115W8ARA
P11142DKR ND
P11142DKRND
P11142DKR
