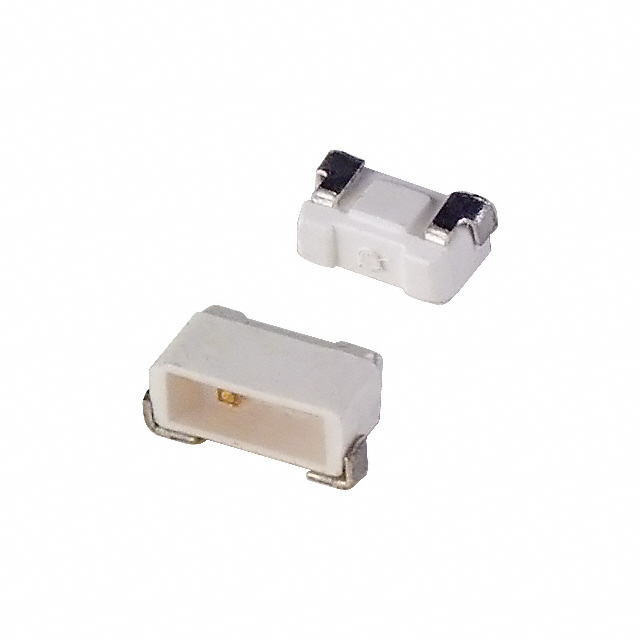

LNJ210C6RRA

Series: -
Lens Type: Clear
Packaging: Cut Tape (CT)Alternate Packaging
Current - Test: 10mA
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Mounting Type: Surface Mount, Right Angle
Package / Case: 0805 (2012 Metric)
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Forward (Vf) Typ: 2.03V
Height: 1.00mm
Wavelength - Peak: 700nm
Millicandela Rating: 0.7mcd
Lens Style/Size: Rectangle with Flat Top, 2mm x 0.7mm
Size / Dimension: 2.20mm L x 1.20mm W


Specifications

Lighting Color	PD(mW)	IF(mA)	IFP(mA)*	VR(V)	Topr()	Tstg()
Red	60	20	60	4	-25 ~ +80	-30 ~ +85
Red	60	20	60	3	-25 ~ +80	-30 ~ +85
Green	60	20	60	4	-25 ~ +80	-30 ~ +85
Amber	60	20	60	4	-25 ~ +80	-30 ~ +85
Orange	60	20	60	3	-25 ~ +80	-30 ~ +85

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec


Parameters:

Technical/Catalog Information	LNJ210C6RRA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Red
Lens Style/Size	Rectangle, 1.8mm x 0.65mm
Millicandela Rating	0.7mcd
Voltage - Forward (Vf) Typ	2.03V
Wavelength - Dominant	700nm
Wavelength - Peak	700nm
Current - Test	10mA
Viewing Angle	110°
Lens Type	Clear
Luminous Flux	2 mlm
Package / Case	2.2mm x 1.2mm x 1mm
Mounting Type	Surface Mount, Right Angle
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ210C6RRA LNJ210C6RRA P11138DKR ND P11138DKRND P11138DKR
