SeekIC No. : 003613368 Detail

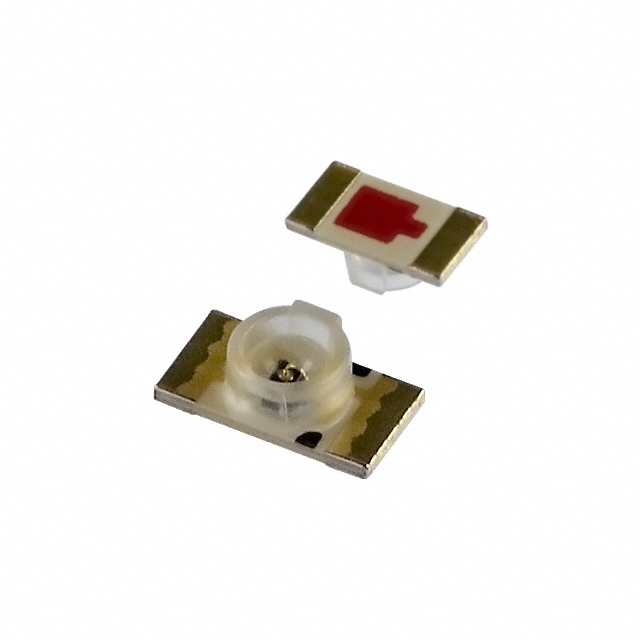

LNJ216C8ARA: LED RED (UP) W/LENS 1206

LNJ216C8ARA Data Sheet

Get Latest Price

Part Number:: LNJ216C8ARA
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Red	Millicandela Rating:	10.5mcd
Voltage - Forward (Vf) Typ:	1.72V	Current - Test:	10mA
Wavelength - Dominant:	-	Wavelength - Peak:	660nm
Viewing Angle:	-	Lens Type:	-
Package / Case :	SOT-339	Lens Style/Size:	Round with Domed Top, 1.7mm
Package / Case:	1206 (3216 Metric)	Size / Dimension:	3.20mm L x 1.60mm W
Height:	1.10mm	Mounting Type:	Surface Mount

Description

Series: -
Mounting Type: Surface Mount
Current - Test: 10mA
Color: Red
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Package / Case: 1206 (3216 Metric)
Size / Dimension: 3.20mm L x 1.60mm W
Height: 1.10mm
Wavelength - Peak: 660nm
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Packaging: Tape & Reel (TR)
Voltage - Forward (Vf) Typ: 1.72V
Lens Style/Size: Round with Domed Top, 1.7mm
Millicandela Rating: 10.5mcd

Specifications

Lighting Color	P_D(mW)	I_F(mA)	I_FP(mA)*	V_R(V)	T_opr()	T_stg()
Red	60	20	100	3	-30 ~ +85	-40 ~ +100
Green	60	20	100	4	-30 ~ +85	-40 ~ +100
Amber	60	20	100	4	-30 ~ +85	-40 ~ +100

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec

Parameters:

Technical/Catalog Information	LNJ216C8ARA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Red
Lens Style/Size	Round, 1.7mm
Millicandela Rating	10.5mcd
Voltage - Forward (Vf) Typ	1.72V
Wavelength - Dominant	660nm
Wavelength - Peak	660nm
Current - Test	10mA
Viewing Angle	105°
Lens Type	Diffused, Red Tinted
Luminous Flux	26 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ216C8ARA LNJ216C8ARA P11511DKR ND P11511DKRND P11511DKR
