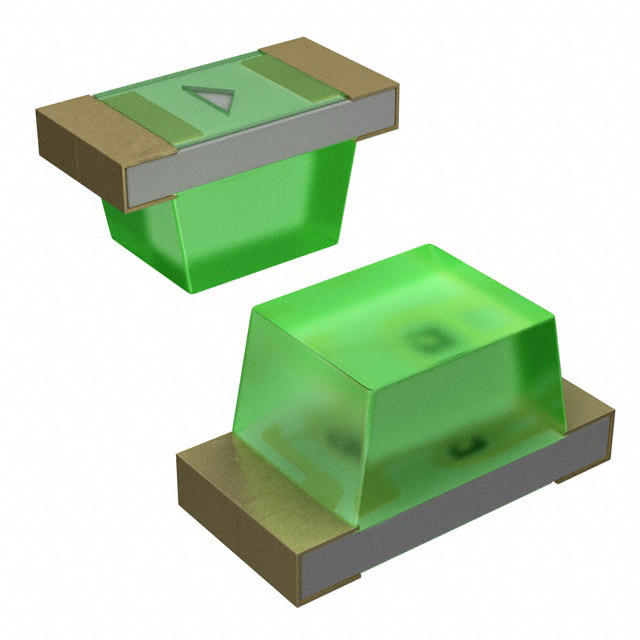

LNJ308G8LRA

Series: -
Color: Green
Lens Style/Size: Rectangle with Flat Top, 1.1mm x 0.8mm
Package / Case: 0603 (1608 Metric)
Size / Dimension: 1.60mm L x 0.80mm W
Height: 0.80mm
Mounting Type: Surface Mount
Wavelength - Peak: 565nm
Current - Test: 5mA
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: Diffused, Tinted
Voltage - Forward (Vf) Typ: 1.9V
Millicandela Rating: 3mcd
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Packaging: Cut Tape (CT)


Specifications

Lighting Color	PD(mW)	IF(mA)	IFP(mA)*	VR(V)	Topr()	Tstg()
Red	50	20	100	3	-30 ~ +85	-40 ~ +100
Green	30	10	50	4	-30 ~ +85	-40 ~ +100
Green	50	20	100	4	-30 ~ +85	-40 ~ +100
Amber	50	20	100	4	-30 ~ +85	-40 ~ +100
Amber	30	10	50	4	-30 ~ +85	-40 ~ +100
Orange	30	10	50	3	-30 ~ +85	-40 ~ +100
Soft Orange	50	20	10	3	-30 ~ +85	-40 ~ +100

IFP,duty 10%,Pulse width 1 msec. The condition of IFP is duty 10%, Pulse width 1 msec


Parameters:

Technical/Catalog Information	LNJ308G8LRA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Green
Lens Style/Size	Rectangle, 1.1mm x 0.8mm
Millicandela Rating	3mcd
Voltage - Forward (Vf) Typ	1.9V
Wavelength - Dominant	565nm
Wavelength - Peak	565nm
Current - Test	5mA
Viewing Angle	150°
Lens Type	Diffused, Green Tinted
Luminous Flux	14 mlm
Package / Case	0603 (1608 metric)
Mounting Type	Surface Mount
Packaging	Cut Tape (CT)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ308G8LRA LNJ308G8LRA P521CT ND P521CTND P521CT
