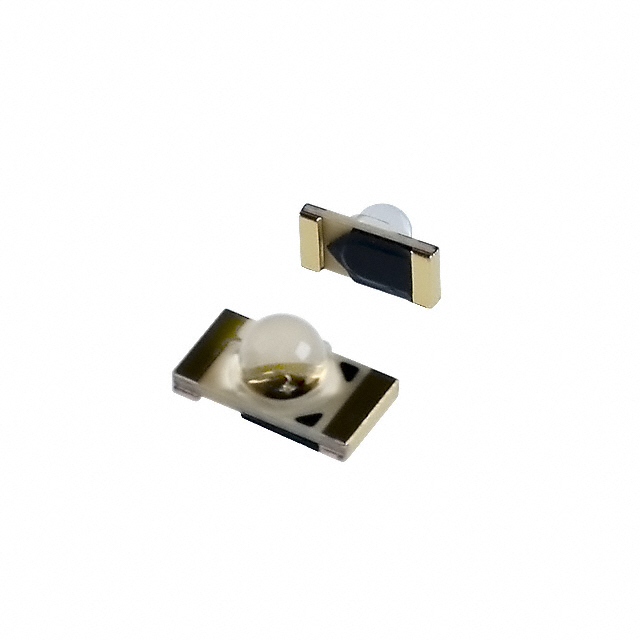

LNJ818C8DRA: LED ORANGE (UP) W/LENS 1206

LNJ818C8DRA Data Sheet

US $ .08~.08 / Piece | Get Latest Price

Part Number:: LNJ818C8DRA
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~2000
2000~6000

Unit Price
$.08
$.08

Processing time
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

LNJ806K5SRX evaluate
US $.08 - .27 / Piece

LED SOFT ORANGE S-J TYPE 0805
LNJ806K5SUX evaluate
US $.05 - .06 / Piece

LED SOFT ORANGE S-J TYPE 0805
LNJ806R58RW evaluate
Specifications Lighting Color PD(mW) IF(mA) IFP(mA)* VR(V) Topr() Tstg() ...

Product Details

Quick Details

Series:	-	Manufacturer:	Panasonic Electronic Components - Semiconductor Products
Color:	Orange	Millicandela Rating:	9mcd
Voltage - Forward (Vf) Typ:	1.93V	Current - Test:	10mA
Supply Current (Max) :	0.0023 mA	Wavelength - Dominant:	-
Wavelength - Peak:	630nm	Viewing Angle:	-
Lens Type:	-	Lens Style/Size:	Round with Flat Top, 1.7mm
Package / Case:	1206 (3216 Metric)	Size / Dimension:	3.20mm L x 1.60mm W
Height:	1.10mm	Mounting Type:	Surface Mount

Description

Series: -
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Current - Test: 10mA
Color: Orange
Wavelength - Dominant: -
Viewing Angle: -
Lens Type: -
Wavelength - Peak: 630nm
Package / Case: 1206 (3216 Metric)
Size / Dimension: 3.20mm L x 1.60mm W
Height: 1.10mm
Manufacturer: Panasonic Electronic Components - Semiconductor Products
Voltage - Forward (Vf) Typ: 1.93V
Millicandela Rating: 9mcd
Lens Style/Size: Round with Flat Top, 1.7mm

Parameters:

Technical/Catalog Information	LNJ818C8DRA
Vendor	Panasonic - SSG (VA)
Category	Optoelectronics
Color	Orange
Lens Style/Size	Round, 1.7mm
Millicandela Rating	9mcd
Voltage - Forward (Vf) Typ	1.93V
Wavelength - Dominant	630nm
Wavelength - Peak	630nm
Current - Test	10mA
Viewing Angle	30°
Lens Type	Clear
Luminous Flux	2 mlm
Package / Case	1206 (3216 metric)
Mounting Type	Surface Mount
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	LNJ818C8DRA LNJ818C8DRA P11563DKR ND P11563DKRND P11563DKR
