Pinout
Specifications| Output Current | 1500 mA |
| Output Min | 0.6 Volt |
| Input Min Voltage | 2.7 Volt |
| Input Max Voltage | 5.5 Volt |
| Dropout Voltage | 0.220 Volt |
| Adjustable Output | Yes |
| Quiescent Current | 2 mA |
| PSRR | 58 dB |
| Voltage Noise (rms) | 100 uV |
| Ceramic Capacitors Stable | Yes |
| Feedback Tolerance | 3.5 % |
| On/Off Pin | Yes |
| Error Flag | No |
| RegType | LDO |
| Temperature Min | -40 deg C |
| Temperature Max | +125 deg C |
| Special Features | Flexcap LDO |
| Output Max | 5.1 Volt |
| Feedback Voltage | 0.6 Volt |
| View Using Catalog |

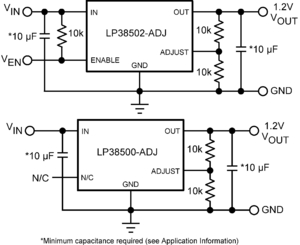

DescriptionNational's FlexCap LDO's feature unique compensation that allows the use of any type of output capacitor with no limits on minimum or maximum ESR. The LP38502-ADJ series of low-dropout linear regulators operates from a +2.7V to +5.5V input supply. These ultra low dropout linear regulators respond very quickly to step changes in load, which makes them suitable for low voltage microprocessor applications. Developed on a CMOS process, (utilizing a PMOS pass transistor), the LP38502-ADJ has low quiescent current that changes little with load current.
Ground Pin Current: Typically 2 mA at 1.5A load current.
Disable Mode: Typically 25 nA quiescent current when the Enable pin is pulled low.
Simplified Compensation: Stable with any type of output capacitor, regardless of ESR.
Precision Output: "A" grade versions available with 1.5% VADJ tolerance (25°C) and 3% over line, load and temperature.
