LP3936

Features: `High Efficiency 250 mA Magnetic Boost DC-DC Converter with Programmable Output Voltage`PWM controlled RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking` FLASH function with 3 drivers, each up to 120 mA current`4 constant current White LED drivers with ...

product image

LP3936 Picture
See larger image
SeekIC No. : 004398860 Detail

LP3936: Features: `High Efficiency 250 mA Magnetic Boost DC-DC Converter with Programmable Output Voltage`PWM controlled RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking`...

LP3936 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP3936
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`High Efficiency 250 mA Magnetic Boost DC-DC Converter with Programmable Output Voltage
`PWM controlled RGB LED drivers with programmable color, brightness, turn on/off slopes and blinking
` FLASH function with 3 drivers, each up to 120 mA current
`4 constant current White LED drivers with programmable 8-bit adjustment (0 . 25 mA/LED)
` 2 constant current White LED drivers with programmable 8-bit adjustment (0 . 25 mA/LED)
` 8-bit ADC for ambient light sensor with averaging
` Combined MicroWire/SPI and I2C compatible serial interface
` Low current Standby mode (software controlled)
`Low voltage digital interface down to 1.8V
` Space efficient 32-pin thin CSP laminate package




Application

·Cellular Phones
· PDAs




Pinout

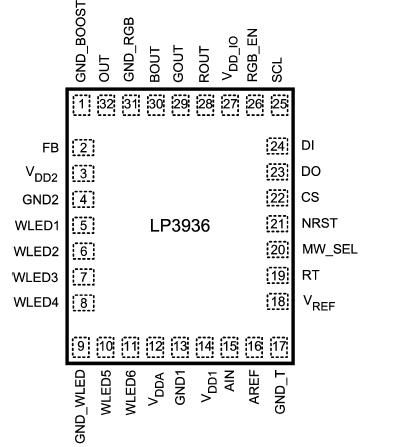

Connection Diagram




Specifications

VDD1, VDD2, VDD_IO, V(OUT, FB) ..........................-0.3V to 6.0V
Voltage on Logic Pins............................. -0.3V to VDD_IO +
.......................................0.3V, with 6.0V max
Voltage on LED Output Pins..........................-0.3V to V(FB) +
.......................................0.3V, with 6.0V max
Voltage on All Other Pins ...........................-0.3V to VDD1,2 +
.......................................0.3V, with 6.0V max
I (ROUT, GOUT, BOUT) .................................150 mA
I (VREF) ..........................................10 A
Continuous Power Dissipation (Note 3) Internally Limited
Junction Temperature (TJ-MAX) .............................125°C
Storage Temperature Range ........................−65°C to +150°C
Maximum Lead Temperature .............................. 260°C
(Reflow soldering, 3 times) (Note 4)
ESD Rating (Note 5)
Human Body Model: ....................................2 kV
Machine Model: ......................................200V

Regulated LEDs 6
LED Configuration Parallel
Current Matching 0.50%
Boost Type Inductive
Switching Frequency 1000 kHz
Switching Type PWM
Total LED Current 250 mA
Efficiency (peak) 90 %
PowerWise Technology Programmable RGB Driver
Boost Voltage Regulated
Supply Current 1 mA
Input Min Voltage 3 Volt
Input Max Voltage 6 Volt
OutputMax Voltage 5.3 Volt
PWM BrightCtrl Yes
Analog-V BrightCtrl No
Ambient Light Compensation Yes
RGB-LED Yes
Temperature Min -40 deg C
Temperature Max 85 deg C
RegType Lighting Management Unit
PowerWise Yes
View Using Catalog





Description

LP3936 is a complete lighting management system designed for portable wireless applications. It contains a boost DC/DC converter, 4 white LED drivers to drive the main LCD panel backlight, 2 white LED drivers for sub-LCD panel and 1 set of RGB LED drivers.

Both WLED groups have 8-bit programmable constant current drivers that are separately adjustable and matched to 1% (typ.). For efficient backlighting the backlight intensity can be adjusted using the 8-bit ADC with ambient light detection circuit.

The RGB LED drivers are PWM-driven with programmable color, intensity and blinking patterns. In addition, they feature a FLASH function to support picture taking with cameraenabled cellular phones.

An efficient magnetic boost converter provides the required bias operating from a single Li-Ion battery. The DC/DC converter output voltage is user programmable for adapting to different LED types and for efficiency optimization. All functions are software controllable through an I2C and MicroWire/SPI compatible interface and 16 internal registers.
