Product Details

Description

Features:

·Power-switch for dual band CDMA power amplifier

Application

·Dual-band CDMA phones with MSM3xxx or MSM5xxx platform

Pinout

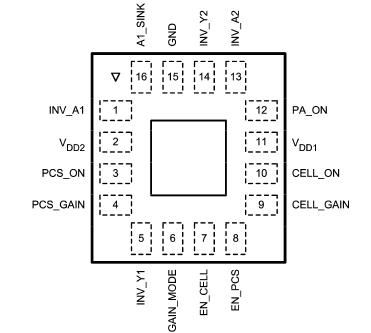

Connection Diagram

Specifications

V_DD1, V_DD2.............................. −0.3V to +6.0V
EN_CELL, EN_PCS,
GAIN_MODE, INV_A1,
INV_A2, PA_ON, INV_Y1,
CELL_ON, CELL_GAIN,
PCS_ON, PCS_GAIN, INV_Y2
and A1_SINK .........................−0.3V to (V_DD + 0.3V)
GND to GND SLUG ...............................±0.3V
Junction Temperature ............................ 150°C
Maximum Power Dissipation
(Note 3) ....................................2.0W
Storage Temperature ......................−65°C to +150°C
ESD (Note 4):
Human Body Model ...............................2 kV
Machine Model .................................200V

Description

Designed specifically for Qualcomm's MSM3xxx and MSM5xxx series, the LP3939 is an integrated device that provides interface to the baseband processor to powerswitch two independent power amplifiers in dual band applications. By integrating the discrete components necessary to achieve the same functions, the LP3939 drastically reduces board space and component cost.
