LP39542

PinoutSpecificationsRegulated LEDs13LED ConfigurationParallelCurrent Matching0.2%Boost TypeInductiveSwitching Frequency2000 kHzSwitching TypePWMTotal LED Current400 mAEfficiency (peak)90 %PowerWise TechnologyAudio Adaptive RGB LED DriverBoost VoltageRegulatedInput Min Voltage3 VoltInput Max Voltag...

product image

LP39542 Picture
See larger image
SeekIC No. : 004398872 Detail

LP39542: PinoutSpecificationsRegulated LEDs13LED ConfigurationParallelCurrent Matching0.2%Boost TypeInductiveSwitching Frequency2000 kHzSwitching TypePWMTotal LED Current400 mAEfficiency (peak)90 %PowerWise ...

LP39542 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LP39542
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout




Specifications

Regulated LEDs13
LED ConfigurationParallel
Current Matching0.2%
Boost TypeInductive
Switching Frequency2000 kHz
Switching TypePWM
Total LED Current400 mA
Efficiency (peak)90 %
PowerWise TechnologyAudio Adaptive RGB LED Driver
Boost VoltageRegulated
Input Min Voltage3 Volt
Input Max Voltage7.2 Volt
OutputMax Voltage5.3 Volt
PWM BrightCtrlYes
Analog-V BrightCtrlYes
Ambient Light CompensationYes
RGB-LEDYes
Temperature Min-30 deg C
Temperature Max85 deg C
RegTypeLighting Management Unit
PowerWiseYes
View Using Catalog



Description

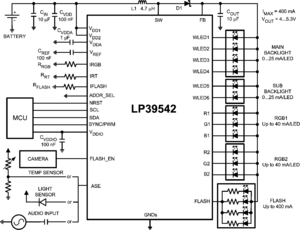

LP39542 is an advanced lighting management unit for handheld devices. It drives any phone lights including display backlights, RGB, keypad and camera flash LEDs. The boost DC-DC converter drives high current loads with high efficiency. White LED backlight drivers are high efficiency low voltage structures with excellent matching and automatic fade in/ fade out function. The stand-alone command based RGB controller is feature rich and easy to configure. Built-in audio synchronization feature allows user to synchronize the color LEDs to audio input. Integrated high current driver can drive camera flash LED or motor/vibra. Internal ADC can be used for ambient light or temperature sensing. The flexible I 2C interface allows easy control of LP39542. Small micro SMD package together with minimum number of external components is a best fit for handheld devices.
