Features: ·1% Voltage Accuracy at Room Temperature
·Stable with Ceramic Capacitor
·Logic Controlled Enable
·No Noise Bypass Capacitor Required
·Thermal-Overload and Short-Circuit ProtectionApplication·Cellular Handsets
·Hand-Held Information AppliancesPinout
Specifications
| Output Current |
150 mA |
| Output Min |
1.8, 1.35, 2.5, 0.8, 1.2, 3.3, 2.8, 1.5 Volt |
| Input Min Voltage |
2, 2.3, 3.3, 3, 3.8 Volt |
| Input Max Voltage |
6 Volt |
| Dropout Voltage |
0.06 Volt |
| Adjustable Output |
No |
| Quiescent Current |
0.043 mA |
| On/Off Pin |
Yes |
| Error Flag |
No |
| RegType |
LDO |
| Temperature Min |
-40 deg C |
| Temperature Max |
125 deg C |
| Output Voltage |
1.8, 1.35, 2.5, 0.8, 1.2, 3.3, 2.8, 1.5 Volt |
| Output Max |
1.8, 1.35, 2.5, 0.8, 1.2, 3.3, 2.8, 1.5 Volt |
| View Using Catalog |
Input Voltage -0.3 to 6.5V
Output Voltage -0.3 to (VIN + 0.3V) to6.5V (max)
Enable Input Voltage -0.3 to (VIN + 0.3V) to 6.5V (max)
Junction Temperature150°C
Lead/Pad Temp. (Note 3) LLP/SOT23 235°C
micro SMD 260°C
Storage Temperature -65 to 150°C
Continuous Power Dissipation
Internally Limited(Note 4)
ESD (Note 5)
Human Body Model 2KV

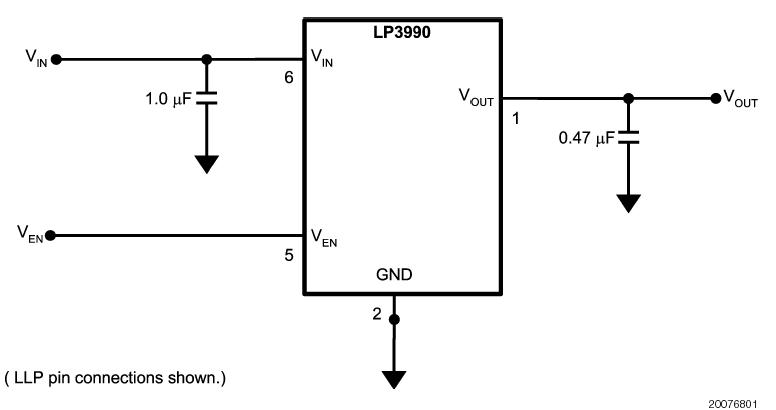

Machine Model 200VDescriptionThe LP3990 regulator is designed to meet the requirements of portable, battery-powered systems providing an accurate output voltage, low noise, and low quiescent current. The LP3990 will provide a 0.8V output from the low input voltage of 2V at up to 150mA load current. When switched into shutdown mode via a logic signal at the enable pin, the power consumption is reduced to virtually zero.
The LP3990 is designed to be stable with space saving ceramic capacitors as small as 1.0µF.
Performance is specified for a -40°C to 125°C junction temperature range.
For output voltages other than 0.8V, 1.2, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, or 3.3V please contact your local NSC sales office.
Reliability Metrics
| Part Number |
Process |
EFR Reject |
EFR Sample Size |
PPM |
LTA Rejects |
LTA Device Hours |
FITS |
MTTF (Hours) |
| LP3990MF-1.2 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MF-1.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MF-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MF-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MF-2.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MF-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-1.2 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-1.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-2.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990MFX-3.3 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-0.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-1.2 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-1.35 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-1.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SD-2.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SDX-1.35 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990SDX-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-0.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-1.2 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-1.35 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-1.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TL-2.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-0.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-1.2 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-1.35 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-1.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-1.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-2.5 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| LP3990TLX-2.8 |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.For more information on Reliability Metrics, please click here.
