Product Details

Description

Pinout

Specifications

Input Min Voltage	2.7 Volt
Input Max Voltage	5.5 Volt
Output Range	Bucks: 0.6 to 1.2V; LDO1: 0.7 to 2.2V; LDO2 and LDO4: 1.5 to 3.3V; LDO3: 0.6 to 1.35V
Channels	6 Channels
Dropout Voltage	0.19 Volt
PowerWise Technology	Adaptive Voltage Scaling
Output1 VoutMin	0.6 Volt
Output1 VoutMax	1.2 Volt
Output1 IoutMax	300 mA
Output1 Topology	Buck
Output2 VoutMin	0.6 Volt
Output2 VoutMax	1.2 Volt
Output2 IoutMax	300 mA
Output2 Topology	Buck
Output3 VoutMin	1.5
Output3 VoutMax	3.3 Volt
Output3 IoutMax	250 mA
Output3 Topology	LDO
Output4 VoutMin	0.7 Volt
Output4 VoutMax	2.2 Volt
Output4 IoutMax	100 mA
Output4 Topology	LDO
Special Features	PowerWise 1.0 compliant. 1 AVS Buck, 1 DVS Buck, 4 LDOs; NWELL and PWELL bias outputs.
Topology	Buck, LDO
Switching Frequency	1000 kHz
Adj Switch Frequency	No
Sync Pin	No
RegType	Power Management Unit
Step-Down	Yes
Step-Up	No
Inverting	No
Flyback	No
Efficiency (peak)	90 %
Adjustable Output	Yes
Error Flag	No
On/Off Pin	Yes
Multiple Output Capability	Yes
Temperature Min	-40 deg C
Temperature Max	+125 deg C
PowerWise	Yes
View Using Catalog

Description

The LP5551 is a PWI 1.0 compliant Energy Management System for reducing power consumption of stand-alone mobile phone processors such as base-band or applications processors.

The LP5551 contains two advanced, digitally controlled switching regulators for supplying variable voltage to processor core and memory. Two regulators provide P- and N- well biasing for threshold scaling applications. The device also integrates 4 programmable LDO-regulators for powering I/O, PLLs and maintaining memory retention in shutdown-mode.

The device is controlled via the PWI open-standard interface. The LP5551 operates cooperatively with PowerWise™ technology compatible processors to optimize supply voltages adaptively over process and temperature variations or dynamically using frequency/voltage pre-characterized look-up tables and provides P- and N-well biasing for threshold scaling.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LP5551SQ	CMOS7	0	16561	0	0	954000	4	270700104
LP5551SQX	CMOS7	0	16561	0	0	954000	4	270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Design Tools

Title	Size in Kbytes	Date
Processor Energy Savings Through Adaptive Voltage Scaling			View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Application Notes

Title	Size in Kbytes	Date
AN-1467: Application Note 1467 LP5551 Evaluation Board	32843 Kbytes	8-Jun-07	Download

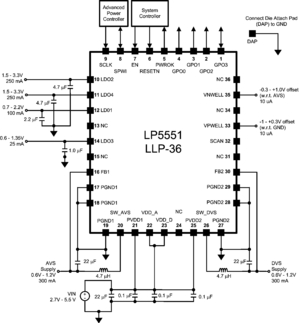

AN-1467 (Japanese): Application Note 1467 LP5551 Evaluation Board 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">	1847 Kbytes
AN-1653: Application Note 1653 User's Graphical User Interface(GUI) for LP555x Evaluation Board PowerWise? Technology Compliant Energy Management Unit	1675 Kbytes	7-Jun-07	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title	Size in Kbytes	Date
AN-1460: Application Note 1460 Emulating the PowerWise Interface Using GPIOs and Software	448 Kbytes	12-Apr-06	Download
AN-1857: Application Note 1857 LP5553 Evaluation Kit	3940 Kbytes	25-Mar-09	Download
AN-1610: Application Note 1610 LP5552 Evaluation Board	10829 Kbytes	20-May-08	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.
