Product Details

Description

Pinout

Specifications

Input Min Voltage	2.7 Volt
Input Max Voltage	4.8 Volt
Output Range	Bucks: 0.6 to 1.235V; LDO1: 0.7 to 2.2V; LDO2: 1.5 to 3.3V; LDO3 and LDO4: 0.6 to 1.25V; LDO5: 1.2 to 3.3V
Channels	7 Channels
Dropout Voltage	0.26 Volt
PowerWise Technology	Adaptive Voltage Scaling
Output1 VoutMin	0.6 Volt
Output1 VoutMax	1.235 Volt
Output1 IoutMax	800 mA
Output1 Topology	Buck
Output2 VoutMin	0.6 Volt
Output2 VoutMax	1.235 Volt
Output2 IoutMax	800 mA
Output2 Topology	Buck
Output3 VoutMin	1.5
Output3 VoutMax	3.3 Volt
Output3 IoutMax	250 mA
Output3 Topology	LDO
Output4 VoutMin	0.7 Volt
Output4 VoutMax	2.2 Volt
Output4 IoutMax	100 mA
Output4 Topology	LDO
Special Features	PowerWise 2.0 compliant with 2 slave domains. 2 Buck regulators; 5 LDOs.
Topology	Buck, LDO
Switching Frequency	3600 kHz
Adj Switch Frequency	No
Sync Pin	No
RegType	Power Management Unit
Step-Down	Yes
Step-Up	No
Inverting	No
Flyback	No
Efficiency (peak)	88 %
Adjustable Output	Yes
Error Flag	No
On/Off Pin	Yes
Multiple Output Capability	Yes
Temperature Min	-40 deg C
Temperature Max	+125 deg C
PowerWise	Yes
View Using Catalog

Description

The LP5552 is a PWI ™ 2.0 compliant Energy Management Unit (EMU) for reducing power consumption in low-power, portable applications.

The LP5552 contains 2 advanced, digitally controlled switching regulators for supplying variable voltages to a SoC or processor. The device also incorporates 5 programmable low-dropout, low-noise linear regulators for powering I/O, peripheral logic blocks, auxiliary system functions, and maintaining memory retention (dual-domains) in shutdown-mode.

The device is controlled via the high-speed serial PWI 2.0 open-standard interface. The LP5552 operates cooperatively with PowerWise ® technology-compatible processors to optimize supply voltages adaptively (AVS - Adaptive Voltage Scaling) over process and temperature variations. It also supports dynamic voltage scaling (DVS) using frequency/voltage pairs from pre-characterized lookup tables.

Reliability Metrics

Part Number	Process	EFR Reject	EFR Sample Size	PPM	LTA Rejects	LTA Device Hours	FITS	MTTF (Hours)
LP5552TL	CMOS7	0	16561	0	0	954000	4	270700104
LP5552TLX	CMOS7	0	16561	0	0	954000	4	270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.

Design Tools

Title	Size in Kbytes	Date
Processor Energy Savings Through Adaptive Voltage Scaling			View
Optimizing Power Consumption in the Mobile Multimedia Delivery Chain - Part One			View
Optimizing Power Consumption in the Mobile Multimedia Delivery Chain - Part Two			View

If you have trouble printing or viewing PDF file(s), see Printing Problems.

Application Notes

Title	Size in Kbytes	Date
AN-1610: Application Note 1610 LP5552 Evaluation Board	10829 Kbytes	20-May-08	Download

If you have trouble printing or viewing PDF file(s), see Printing Problems.

More Application Notes

Title	Size in Kbytes	Date
AN-1653: Application Note 1653 User's Graphical User Interface(GUI) for LP555x Evaluation Board PowerWise? Technology Compliant Energy Management Unit	1675 Kbytes	7-Jun-07	Download
AN-1460: Application Note 1460 Emulating the PowerWise Interface Using GPIOs and Software	448 Kbytes	12-Apr-06	Download
AN-1857: Application Note 1857 LP5553 Evaluation Kit	3940 Kbytes	25-Mar-09	Download
AN-1467: Application Note 1467 LP5551 Evaluation Board	32843 Kbytes	8-Jun-07	Download

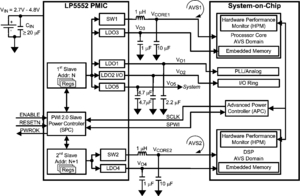

AN-1467 (Japanese): Application Note 1467 LP5551 Evaluation Board 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">	1847 Kbytes
