Part Number: LS204

MFG: ST

Package Cooled: CDIP8

D/C: 00+

Description: The LS204 is a high performance dual operational amplifier with frequency and phase compensation built intothe chip. Th...

LS204 General Description

The LS204 is a high performance dual operational amplifier with frequency and phase compensation built intothe chip. The internalphasecompensation allows stable operation as voltage follower in spite of its high Gain-Bandwidth Product.

The circuit presents very stable electrical characteristics over the entire supply voltage range, and is particularlyintendedfor professionaland telecom applications (active filter, etc).

LS204 Maximum Ratings

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	±18	V
V_i	Input Voltage	±V_CC
V_id	Differential Input Voltage	± (V_CC - 1)
T_oper	Operating Temperature Range LS204C LS204I	0 to +70 -40 to +105
P_tot	Power Dissipation at T_amb= 70	500	mW
T_j	Junction Temperature	150
T_stg	Storage Temperature Range	-65 to +150

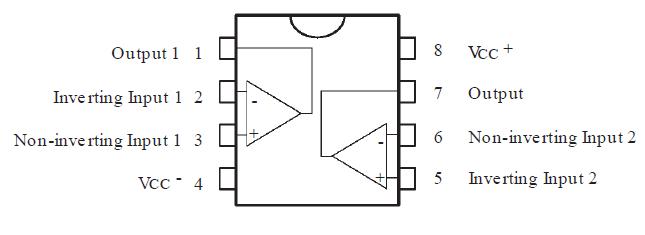

LS204 Connection Diagram

LS204 datasheet

LS204
PDF/DataSheet Download

Datasheet: LS204
File Size: 144926 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Click here to Download
