Product Details

Description

Features:

• Direct Interface with PIR Sensor
• Two-Stage Differential Amplifier
• Amplifier Gain and Bandwidth externally controlled
• True and Complementary Output Drives
• Separate digital filters for processing positive and negative input signals
• Single Pulse/Dual Pulse/ Concurrent Pulse Detection
• Adjustable Output Pulse Width
• Optional 5V Shunt Regulator Output
• 50A Typical Supply Current
• Undervoltage Detection
• LS6511(DIP); LS6511-S (SOIC) - See Figure 1

Application

·Security system intrusion detection, automatic doors, motion
·triggered events such as remote animal photography.

Pinout

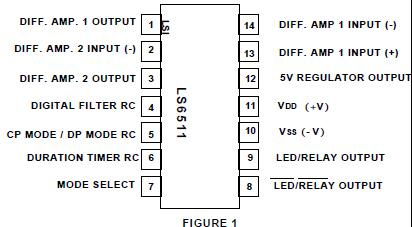

Connection Diagram

Specifications

PARAMETER	SYMBOL	VALUE	UNIT
DC supply voltage	V_DD - V_SS	+7	V
Any input voltage	V_IN	VSS - 0.3 to VDD + 0.3	V
Operating temperature	T_A	-40 to +85
Storage temperature	T_STG	-65 to +150

Description

The LS6511 is a CMOS integrated circuit, designed for detecting motion from a PIR Sensor and initiating appropriate responses.
