Product Details

Description



Features:

• DC to 7.5 MHz Count Frequency
• Multiplexed BCD Outputs
• DC to 500kHz Scan Frequency
• +4.75V to +15V Operation (VDD-VSS)
• Compatible with CMOS Logic
• High Input Noise Immunity
• Ability to Latch External BCD Data in the two LSD Positions
• Leading Zero Blanking with Decimal Point and Overflow Controls
• All inputs protected
• Low Power Dissipation
• 40 Pin DIP - See Figure 1

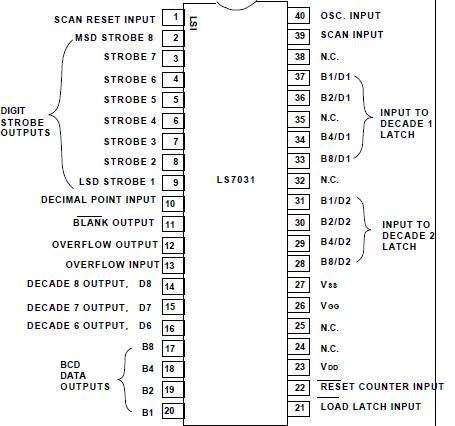

Pinout

Connection Diagram


Specifications

PARAMETER

SYMBOL

VALUE

UNIT

StorageTemperature

TSTG

-65 to +150

Operating Temperature

TA

-25 to +70

Voltage (any pin to VSS)

Vmax

-30 to +0.5

V




Description

The LS7031 is a monolithic, ion implanted MOS, 6 decade up counter.

The circuit includes latches, a multiplexer, leading zero blanking and BCD data outputs.
