MFG:Linear Technology Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Linear Technology
Descriptions: IC MOSFET DRIVER N-CH QUAD20SOIC
722
3.59999
2599.19
| Technical/Catalog Information | LT1161CSW |
| Vendor | Linear Technology |
| Category | Integrated Circuits (ICs) |
| Configuration | High-Side |
| Voltage - Supply | 8 V ~ 48 V |
| Current - Peak | - |
| Delay Time | 220s |
| Package / Case | 20-SOIC (7.5mm Width) |
| Packaging | Tube |
| Number of Outputs | 4 |
| Input Type | Non-Inverting |
| Number of Configurations | 4 |
| Operating Temperature | 0°C ~ 70°C |
| High Side Voltage - Max (Bootstrap) | - |
| Drawing Number | 161; 05-08-1620; SW; 16 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | LT1161CSW LT1161CSW |
LT10.7MS2
PDF/DataSheet Download

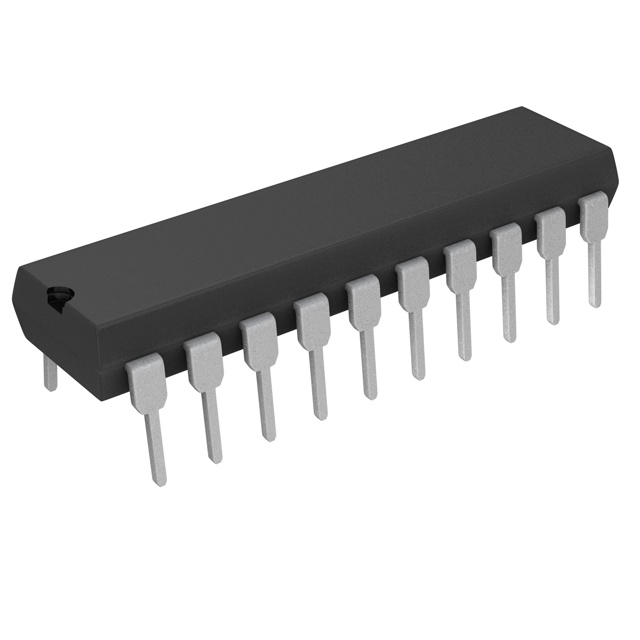

IC MOSFET DRIVER N-CH QUAD 20DIP
IC MOSFET DRIVER N-CH QUAD 20DIP
The LT1161 is a quad high-side gate driver allowing the use of low cost N-channel power MOSFETs for high-side switching applications. It has four independent switch channels, each containing a completely self-contained charge pump to fully enhance an N-chann...
