Purchase LT1302, In-stock LT1302 From SeekIC.
MFG:LT Package Cooled:SMD-8
Part Number: LT1302
MFG: LT
Package Cooled: SMD-8
Description: The LT®1302/LT1302-5 are micropower step-up DC/DC converters that maintain high efficie...
- Table of contents:
LT1302
-
Suppliers
DataSheet
General Description
LT1302 General Description
The LT®1302/LT1302-5 are micropower step-up DC/DC converters that maintain high efficiency over a wide range of output current. They operate from a supply voltage as low as 2V and feature automatic shifting between Burst Mode operation at light load, and current mode operation at heavy load.
The internal low loss NPN power switch can handle current in excess of 2A and switch at frequencies up to 400kHz. Quiescent current is just 200mA and can be further reduced to 15mA in shutdown.
Available in 8-pin PDIP or 8-pin SO packaging, the LT1302/ LT1302-5 have the highest switch current rating of any similarly packaged switching regulators presently on the market.
LT1302 Maximum Ratings
VIN Voltage ............................................................10V
SW Voltage ........................................................... 25V
FB Voltage .............................................................10V
SHDN Voltage ........................................................10V
VC Voltage ...............................................................4V
IT Voltage ................................................................4V
Maximum Power Dissipation ............................ 700mW
Operating Temperature Range .................... 0 to 70
Storage Temperature Range ............... 65 to 150
Lead Temperature (Soldering, 10 sec)................. 300
SW Voltage ........................................................... 25V
FB Voltage .............................................................10V
SHDN Voltage ........................................................10V
VC Voltage ...............................................................4V
IT Voltage ................................................................4V
Maximum Power Dissipation ............................ 700mW
Operating Temperature Range .................... 0 to 70
Storage Temperature Range ............... 65 to 150
Lead Temperature (Soldering, 10 sec)................. 300
LT1302 Features
· 5V at 600mA or 12V at 120mA from 2-Cell Supply
· 200mA Quiescent Current
· Logic Controlled Shutdown to 15mA
· Low VCESAT Switch: 310mV at 2A Typical
· Burst ModeTM Operation at Light Load
· Current Mode Operation for Excellent Line and Load Transient Response
· Available in 8-Lead SO or PDIP
· Operates with Supply Voltage as Low as 2V
· 200mA Quiescent Current
· Logic Controlled Shutdown to 15mA
· Low VCESAT Switch: 310mV at 2A Typical
· Burst ModeTM Operation at Light Load
· Current Mode Operation for Excellent Line and Load Transient Response
· Available in 8-Lead SO or PDIP
· Operates with Supply Voltage as Low as 2V
LT1302 Typical Application
· Notebook and Palmtop Computers
· Portable Instruments
· Personal Digital Assistants
· Cellular Telephones
· Flash Memory
· Portable Instruments
· Personal Digital Assistants
· Cellular Telephones
· Flash Memory

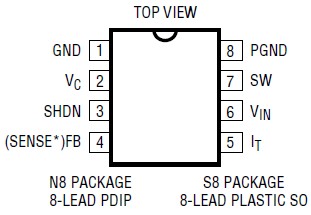

LT1302 Connection Diagram
LT1302
PDF/DataSheet Download
- Datasheet: LT1302
- File Size: 368670 KB
- Manufacturer: Linear
- Click here to Download
