Product Details

Description



Features:

* Fast Transient Response
* Guaranteed Dropout Voltage at Multiple Currents
* Load Regulation: 0.05% Typ
* Trimmed Current Limit
* On-Chip Thermal Limiting



Application

* GTL+ Power Supply
* Low Voltage Logic Supplies
* Battery-Powered Circuitry



Pinout

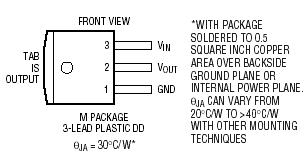

  Connection Diagram


Specifications

VIN .................................................................................... 7V
Operating Junction Temperature Range
   Control Section ............................................... 0 to 125
   Power Transistor ............................................ 0 to 150
Storage Temperature Range ....................... 65 to 150
Lead Temperature (Soldering, 10 sec).......................... 300



Description

The LT®1585-1.5/LT1585A-1.5 are low dropout, 3-terminal regulators with 4.6A and 5A output current capability respectively, and a fixed 1.5V output voltage. The designs are optimized for low voltage applications where transient response and minimum input voltage are critical. Similar to the LT1084, they have lower dropout and faster transient response. These improvements make them ideal for low voltage microprocessor applications, especially as the regulator in an Intel processor GTL+ supply. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal limiting provides protection against any combination of overload that creates excessive junction temperatures. The LT1585-1.5/LT1585A-1.5 are available in the throughhole 3-pin TO-220 power package and 3-pin plastic DD.
