LTC1597

Features: True 16-Bit Performance Over Industrial Temperature RangeDNL and INL: 1LSB MaxOn-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ± 10V OutputsPin Compatible 14- and 16-Bit PartsAsynchronous Clear Pin-LTC1591/LTC1597: Reset to Zero Scale-LTC1591-1/LTC1597-1: Reset to Midsc...

product image

LTC1597 Picture
See larger image
SeekIC No. : 004401724 Detail

LTC1597: Features: True 16-Bit Performance Over Industrial Temperature RangeDNL and INL: 1LSB MaxOn-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ± 10V OutputsPin Compatible 14- and 16-Bit ...

LTC1597 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1597
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

True 16-Bit Performance Over Industrial Temperature Range
DNL and INL: 1LSB Max
On-Chip 4-Quadrant Resistors Allow Precise 0V to 10V, 0V to 10V or ± 10V Outputs
Pin Compatible 14- and 16-Bit Parts
Asynchronous Clear Pin
-LTC1591/LTC1597: Reset to Zero Scale
-LTC1591-1/LTC1597-1: Reset to Midscale
Glitch Impulse < 2nV-s
28-Lead SSOP Package
Low Power Consumption: 10µW Typ
Power-On Reset


Application

-Process Control and Industrial Automation
-Direct Digital Waveform Generation
-Software-Controlled Gain Adjustment
-Automatic Test Equipment


Pinout

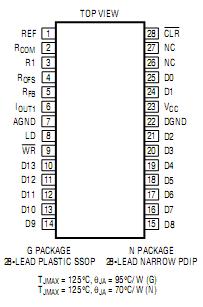

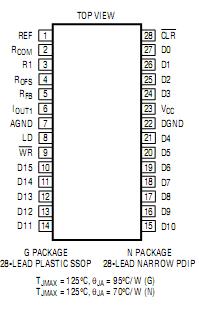

Connection Diagram Connection Diagram


Specifications

VCC to AGND...............................................0.5V to 7V
VCC to DGND.............................................. 0.5V to 7V
AGND to DGND............................................. VCC + 0.5V
DGND to AGND............................................. VCC + 0.5V
REF, ROFS, RFB, R1, RCOM to AGND, DGND........... ±25V
Digital Inputs to DGND................ 0.5V to (VCC + 0.5V)
IOUT1 to AGND........................... 0.5V to( VCC + 0.5V)
Maximum Junction Temperature..........................125°C
Operating Temperature Range
LTC1591C/LTC1591-1C
LTC1597C/LTC1597-1C............................ 0°C to 70°C
LTC1591I/LTC1591-1I
LTC1597I/LTC1597-1I......................... 40°C to 85°C
Storage Temperature Range............. 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®1591/LTC1597 are pin compatible, parallel input 14-bit and 16-bit multiplying current output DACs that oper-ate from a single 5V supply. INL and DNL are accurate to 1LSB over the industrial temperature range in both 2- and 4-quadrant multiplying modes. True 16-bit 4-quadrant multi-plication is achieved with on-chip 4-quadrant multiplication resistors.

These DACs include an internal deglitcher circuit that reduces the glitch impulse to less than 2nV-s (typ). The asynchronous CLR</a> pin resets the LTC1591/LTC1597 to zero scale and LTC1591-1/LTC1597-1 to midscale.

The LTC1591/LTC1597 are available in 28-pin SSOP and PDIP packages and are specified over the industrial tempera-ture range.

For serial interface 16-bit current output DACs refer to the LTC1595/LTC1596 data sheet.
