LTC1628-SYNC

Features: ·Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise·OPTI-LOOPTM Compensation Minimizes COUT·Dual N-Channel MOSFET Synchronous Drive·±1% Output Voltage Accuracy·Power Good Output Voltage Monitor·Phase-Lockable Fixed Frequency 150kHz to 300kHz·Wide VI...

product image

LTC1628-SYNC Picture
See larger image
SeekIC No. : 004401747 Detail

LTC1628-SYNC: Features: ·Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise·OPTI-LOOPTM Compensation Minimizes COUT·Dual N-Channel MOSFET Synchronous Drive·±1% Output Voltag...

LTC1628-SYNC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1628-SYNC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Out-of-Phase Controllers Reduce Required Input Capacitance and Power Supply Induced Noise
·OPTI-LOOPTM Compensation Minimizes COUT
·Dual N-Channel MOSFET Synchronous Drive
·±1% Output Voltage Accuracy
·Power Good Output Voltage Monitor
·Phase-Lockable Fixed Frequency 150kHz to 300kHz
·Wide VIN Range: 3.5V to 36V Operation
·Very Low Dropout Operation: 99% Duty Cycle
·Adjustable Soft-Start Current Ramping
·Foldback Output Current Limiting
·Latched Short-Circuit Shutdown with Defeat Option
·Output Overvoltage Protection
·Remote Output Voltage Sense
·Low Shutdown IQ: 20mA
·5V and 3.3V Standby Regulators
·Small 28-Lead SSOP Package
·Selectable Constant Frequency or Burst ModeTM Operation

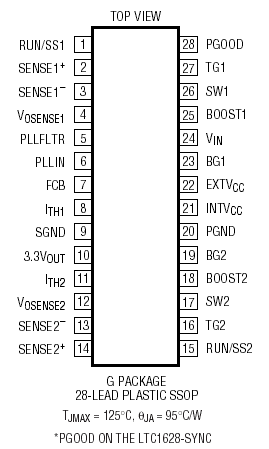

Pinout

Connection Diagram


Specifications

Input Supply Voltage (VIN)...........................................................................36V to 0.3V
Top Side Driver Voltages
(BOOST1, BOOST2) .......................................................................................42V to 0.3V
Switch Voltage (SW1, SW2) .............................................................................36V to 5V
INTVCC, EXTVCC, RUN/SS1, RUN/SS2, (BOOST1-SW1),
(BOOST2-SW2), PGOOD ..................................................................................7V to 0.3V
SENSE1+, SENSE2 +, SENSE1, SENSE2 Voltages ....................... (1.1)INTVCC to 0.3V
PLLIN, PLLFLTR, FCB, Voltage .................................................................. INTVCC to 0.3V
ITH1, ITH2, VOSENSE1, VOSENSE2 Voltages .................................................2.7V to 0.3V
Peak Output Current <10ms (TG1, TG2, BG1, BG2) ......................................................... 3A
INTVCC Peak Output Current ...................................................................................... 50mA
Operating Temperature Range
LTC1628CG-SYNC................................................................................................. 0 to 85
LTC1628IG-SYNC ........................................................................... ................ 40 to 85
Junction Temperature (Note 2) .................................................................................... 125
Storage Temperature Range ......................................................................... 65 to 150
Lead Temperature (Soldering, 10 sec)........................................................................... 300


Description

The LTC®1628-SYNC is a high performance dual stepdown switching regulator controller that drives all N-channel synchronous power MOSFET stages. A constant frequency current mode architecture allows phaselockable frequency of up to 300kHz. Power loss and noise due to the ESR of the input capacitors are minimized by operating the two controller output stages out of phase.

OPTI-LOOP compensation of LTC1628-SYNC allows the transient response to be optimized over a wide range of output capacitance and ESR values. The precision 0.8V reference and power good output indicator are compatible with future microprocessor generations, and a wide 3.5V to 30V (36V maximum) input supply range encompasses all battery chemistries.

A RUN/SS pin for each controller provides both soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when overcurrent latchoff is disabled. Output overvoltage protection circuitry latches on the bottom MOSFET until VOUT returns to normal. The FCB mode pin can select among Burst Mode, constant frequency mode and continuous inductor current mode or regulate a secondary winding. The LTC1628-SYNC includes a power good output pin that indicates when both outputs are within 7.5% of their designed set point.
