LTC1629

Features: · Dual Controller Operates from One to Twelve Phases·Reduces Required Input Capacitance and Power Supply Induced Noise· Current Mode Control Ensures Current Sharing· Phase-Lockable Fixed Frequency: 150kHz to 300kHz· 1.8MHz Effective Switching Frequency· True Remote Sensing Differential A...

product image

LTC1629 Picture
SeekIC No. : 004401748 Detail

LTC1629: Features: · Dual Controller Operates from One to Twelve Phases·Reduces Required Input Capacitance and Power Supply Induced Noise· Current Mode Control Ensures Current Sharing· Phase-Lockable Fixed F...

floor Price/Ceiling Price

Part Number:
LTC1629
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Dual Controller Operates from One to Twelve Phases
·Reduces Required Input Capacitance and Power Supply Induced Noise
· Current Mode Control Ensures Current Sharing
· Phase-Lockable Fixed Frequency: 150kHz to 300kHz
· 1.8MHz Effective Switching Frequency
· True Remote Sensing Differential Amplifier
· OPTI-LOOPTM Compensation Reduces COUT
· ±1% Output Voltage Accuracy
· Power Good Output Voltage Monitor (LTC1629-PG)
· Wide VIN Range: 4V to 36V Operation
· Very Low Dropout Operation: 99% Duty Cycle
· Adjustable Soft-Start Current Ramping
· Internal Current Foldback Plus Shutdown Timer
· Overvoltage Soft-Latch Eliminates Nuisance Trips
· Micropower Shutdown
· Available in 28-Lead SSOP Package




Application

· Desktop Computers
· Internet Servers
· Large Memory Arrays
· DC Power Distribution Systems




Pinout

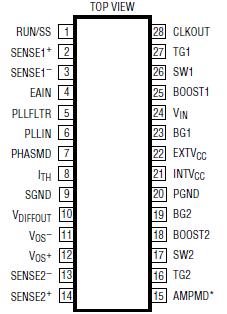

  Connection Diagram


Specifications

Input Supply Voltage (VIN).........................36V to 0.3V
Topside Driver Voltages (BOOST1,2) .........42V to 0.3V
Switch Voltage (SW1, 2) .............................36V to 5 V
SENSE1+, SENSE2+, SENSE1,
SENSE2 Voltages ..................... (1.1)INTVCC to 0.3V
EAIN, VOS+, VOS, EXTVCC, INTVCC,
RUN/SS, AMPMD, PGOOD Voltages...............7V to 0.3V
Boosted Driver Voltage (BOOST-SW) ..........7V to 0.3V
PLLFLTR, PLLIN, CLKOUT, PHASMD,
VDIFFOUT Voltages ............................. INTVCC to 0.3V
ITH Voltage ..............................................2.7V to 0.3V
Peak Output Current <1s(TGL1,2, BG1,2) ............... 5A
INTVCC RMS Output Current ................................. 50mA
Operating Ambient Temperature Range
LTC1629C/LTC1629C-PG ......................... 0°C to 85°C
LTC1629I/LTC1629I-PG .......................40°C to 85°C
Junction Temperature (Note 2) ........................... 125°C
Storage Temperature Range ..............65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C




Description

The LTC®1629/LTC1629-PG are multiple phase, dual, synchronous step-down current mode switching regulator controllers that drive N-channel external power MOSFET stages in a phase-lockable fixed frequency architecture. The PolyPhaseTM controller drives its two output stages out of phase at frequencies up to 300kHz to minimize the RMS ripple currents in both input and output capacitors. The output clock signal allows expansion for up to 12 evenly phased controllers for systems requiring 15A to 200A of output current. The multiple phase technique effectively multiplies the fundamental frequency by the number of channels used, improving transient response while operating each channel at an optimum frequency for efficiency. Thermal design is also simplified.

An internal differential amplifier provides true remote sensing of the regulated supply's positive and negative output terminals as required for high current applications.

A RUN/SS pin provides both soft-start and optional timed, short-circuit shutdown. Current foldback limits MOSFET dissipation during short-circuit conditions when the overcurrent latchoff is disabled. OPTI-LOOP compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC1629-PG includes a power good output pin that replaces the AMPMD control pin of the LTC1629.
