LTC1657

Features: `16-Bit Monotonic Over Temperature`Deglitched Rail-to-Rail Voltage Output: 8nV` s`5V Single Supply Operation`ICC: 650A Typ`Maximum DNL Error: ±1LSB`Settling Time: 20ms to ±1LSB`Internal or External Reference`Internal Power-On Reset to Zero Volts`AsynchronousCLR Pin`Output Buffer Configur...

product image

LTC1657 Picture
See larger image
SeekIC No. : 004401775 Detail

LTC1657: Features: `16-Bit Monotonic Over Temperature`Deglitched Rail-to-Rail Voltage Output: 8nV` s`5V Single Supply Operation`ICC: 650A Typ`Maximum DNL Error: ±1LSB`Settling Time: 20ms to ±1LSB`Internal or...

LTC1657 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC1657
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`16-Bit Monotonic Over Temperature
`Deglitched Rail-to-Rail Voltage Output: 8nV` s
`5V Single Supply Operation
`ICC: 650A Typ
`Maximum DNL Error: ±1LSB
`Settling Time: 20ms to ±1LSB
`Internal or External Reference
`Internal Power-On Reset to Zero Volts
`Asynchronous CLR Pin
`Output Buffer Configurable for Gain of 1 or 2
`Parallel 16-Bit or 2-Byte Double Buffered Interface
`Narrow 28-Lead SSOP Package
`Multiplying Capability


Application

·Instrumentation
·Digital Calibration
·Industrial Process Control
·Automatic Test Equipment
·Communication Test Equipment


Pinout

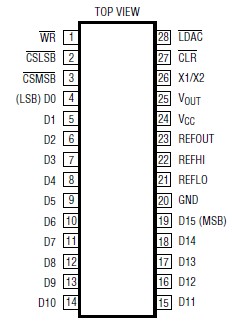

Connection Diagram


Specifications

VCC to GND .............................................. 0.5V to 7.5V
TTL Input Voltage, REFHI, REFLO,
X1/X2....................................................... 0.5V to 7.5V
VOUT, REFOUT ............................ 0.5V to (VCC + 0.5V)
Operating Temperature Range
LTC1657C ................................................ 0°C to 70°C
LTC1657I ............................................. 40°C to 85°C
Maximum Junction Temperature .......................... 125°C
Storage Temperature Range ............ 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®1657 is a complete single supply, rail-to-rail voltage output, 16-bit digital-to-analog converter (DAC) in a 28-pin SSOP or PDIP package. It includes a rail-to-rail output buffer amplifier, an internal 2.048V reference and a double buffered parallel digital interface.

The LTC1657 operates from a 4.5V to 5.5V supply. It has a separate reference input pin that can be driven by an external reference. The full-scale output can be 1 or 2 times the reference voltage depending on how the X1/X2 pin is connected.

The LTC1657 is similar to Linear Technology Corporation's LTC1450 12-bit VOUT DAC family allowing an upgrade path. It is the only buffered 16-bit parallel DAC in a 28-lead SSOP package and includes an onboard reference for stand alone performance.
