LTC2225

Features: Sample Rate: 10Msps Single 3V Supply (2.7V to 3.4V) Low Power: 60mW 71.3dB SNR 90dB SFDR No missing codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family 80Msps: LTC2229 (12-Bit), LTC2249 (14-B...

product image

LTC2225 Picture
See larger image
SeekIC No. : 004402012 Detail

LTC2225: Features: Sample Rate: 10Msps Single 3V Supply (2.7V to 3.4V) Low Power: 60mW 71.3dB SNR 90dB SFDR No missing codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty C...

LTC2225 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2225
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Sample Rate: 10Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 60mW
71.3dB SNR
90dB SFDR
No missing codes
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
   80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
   65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
   40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
   25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
   10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)
32-Pin (5mm * 5mm) QFN Package


Application

Wireless and Wired Broadband Communication
Imaging Systems
Spectral Analysis
Portable Instrumentation


Pinout

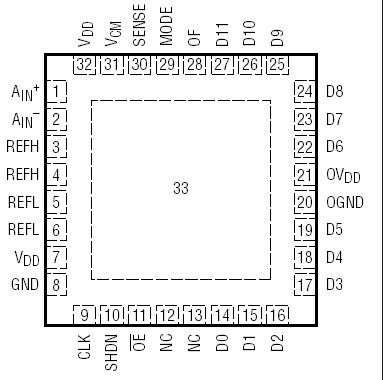

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) .....0.3V to (VDD + 0.3V)
Digital Input Voltage ....................0.3V to (VDD + 0.3V)
Digital Output Voltage ...............0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2225C ...............................................  0°C to 70°C
LTC2225I............................................. 40°C to 85°C
Storage Temperature Range .............65°C to 125°C


Description

The LTC®2225 is a 12-bit 10Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2225 is perfect for demanding imaging and communications applications with
AC performance that includes 71.3dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency. DC specs include ±0.3LSB INL (typ), ±0.15LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.25LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input of LTC2225 controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
