LTC2229

Features: Sample Rate: 80Msps Single 3V Supply (2.7V to 3.4V) Low Power: 211mW 70.6dB SNR at 70MHz Input 90dB SFDR at 70MHz Input No Missing Codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full Power Bandwidth S/H Clock Duty Cycle Stabilizer Shutdown and Nap Modes Pin Compatible Family 80Msps: ...

product image

LTC2229 Picture
See larger image
SeekIC No. : 004402016 Detail

LTC2229: Features: Sample Rate: 80Msps Single 3V Supply (2.7V to 3.4V) Low Power: 211mW 70.6dB SNR at 70MHz Input 90dB SFDR at 70MHz Input No Missing Codes Flexible Input: 1VP-P to 2VP-P Range 575MHz Full P...

LTC2229 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
LTC2229
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/5

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Sample Rate: 80Msps
Single 3V Supply (2.7V to 3.4V)
Low Power: 211mW
70.6dB SNR at 70MHz Input
90dB SFDR at 70MHz Input
No Missing Codes
Flexible Input: 1VP-P to 2VP-P Range
575MHz Full Power Bandwidth S/H
Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Pin Compatible Family
   80Msps: LTC2229 (12-Bit), LTC2249 (14-Bit)
   65Msps: LTC2228 (12-Bit), LTC2248 (14-Bit)
   40Msps: LTC2227 (12-Bit), LTC2247 (14-Bit)
   25Msps: LTC2226 (12-Bit), LTC2246 (14-Bit)
   10Msps: LTC2225 (12-Bit), LTC2245 (14-Bit)
32-Pin (5mm * 5mm) QFN Package


Application

Wireless and Wired Broadband Communication
Imaging Systems
Ultrasound
Spectral Analysis
Portable Instrumentation


Pinout

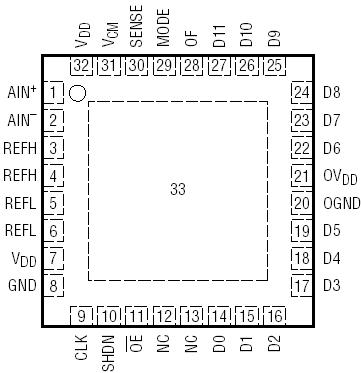

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) .....0.3V to (VDD + 0.3V)
Digital Input Voltage ....................0.3V to (VDD + 0.3V)
Digital Output Voltage ...............0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2229C ...............................................  0°C to 70°C
LTC2229I............................................. 40°C to 85°C
Storage Temperature Range .............65°C to 125°C
Lead Temperature (Soldering, 10 sec)................ 300°C


Description

The LTC®2229 is a 12-bit 80Msps, low power 3V A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2229 is perfect for demanding imaging and communications applications with AC performance that includes 70.6dB SNR and 90dB SFDR for signals well beyond the Nyquist frequency. DC specs include ±0.4LSB INL (typ), ±0.2LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.3LSBRMS.

A single 3V supply allows low power operation. A separate output supply allows the outputs to drive 0.5V to 3.3V logic.

A single-ended CLK input controls converter operation. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
