Product Details

Description



Features:

Sample Rate: 105Msps/80Msps
61dB SNR up to 140MHz Input
75dB SFDR up to 200MHz Input
775MHz Full Power Bandwidth S/H
Single 3.3V Supply
Low Power Dissipation: 475mW/366mW
Selectable Input Ranges: ±0.5V or ±1V
No Missing Codes
Optional Clock Duty Cycle Stabilizer
Shutdown and Nap Modes
Data Ready Output Clock
Pin Compatible Family
   135Msps: LTC2224 (12-Bit), LTC2234 (10-Bit)
   105Msps: LTC2222 (12-Bit), LTC2232 (10-Bit)
   80Msps: LTC2223 (12-Bit), LTC2233 (10-Bit)
48-Pin 7mm x 7mm QFN Package


Application

Wireless and Wired Broadband Communication
Cable Head-End Systems
Power Amplifier Linearization
Communications Test Equipment


Pinout

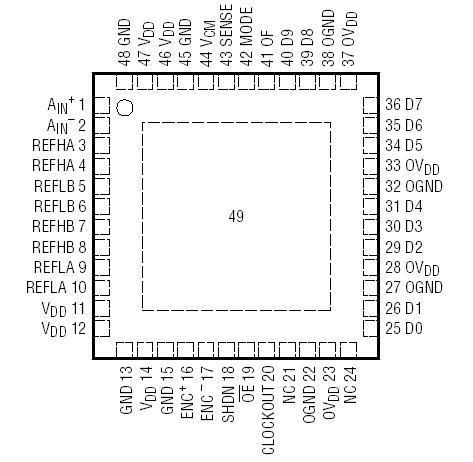

Connection Diagram


Specifications

Supply Voltage (VDD) ................................................. 4V
Digital Output Ground Voltage (OGND) ....... 0.3V to 1V
Analog Input Voltage (Note 3) .... 0.3V to (VDD + 0.3V)
Digital Input Voltage ....................0.3V to (VDD + 0.3V)
Digital Output Voltage ...............0.3V to (OVDD + 0.3V)
Power Dissipation ............................................ 1500mW
Operating Temperature Range
LTC2232C, LTC2233C .............................  0°C to 70°C
LTC2232I, LTC2233I ........................... 40°C to 85°C
Storage Temperature Range .............65°C to 125°C


Description

The LTC®2232 and LTC2233 are 105Msps/80Msps, sampling 10-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2232/ LTC2233 are perfect for demanding communications applications with AC performance that includes 61dB SNR and 75dB spurious free dynamic range for signals up to 200MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.15LSB INL (typ), ±0.1LSB DNL (typ) and ±0.8LSB INL, ±0.6LSB DNL over temperature. The transition noise is a low 0.12LSBRMS.

A separate output power supply of LTC2232/ LTC2233  allows the outputs to drive 0.5V to 3.3V logic.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
