Part Number: LX8940
Description: The LX8940 is a 5V, low dropout, low quiescent current regulator rated for 1A of output current. It ca...
- Table of contents:
LX8940
-
Suppliers
DataSheet
General Description
LX8940 General Description
The LX8940 is a 5V, low dropout, low quiescent current regulator rated for 1A of output current. It can regulate with as low as 0.4V headroom between the input and output voltages, thus minimizing power dissipation. In addition, it can be used in applications where worst case supplies require a low input output differential to maintain regulation. This feature makes it ideal for computer monitors that have to comply with energy-efficient / "Green PC" programs, where the input voltage drops to only a few tenths of a volt above the output when power supplym enters sleep-mode operation.
LX8940 Maximum Ratings
Input Voltage (VIN) ..........................................................................-15V to 26V
Operating Junction Temperature
Plastic (P Package) .....................................................................150°C
Storage Temperature Range ...........................................................-65°C to 150°C
Lead Temperature (Soldering, 10 seconds) .....................................300°C
Operating Junction Temperature
Plastic (P Package) .....................................................................150°C
Storage Temperature Range ...........................................................-65°C to 150°C
Lead Temperature (Soldering, 10 seconds) .....................................300°C
LX8940 Features
2% Internally Trimmed Output
Output Current In Excess Of 1A
Input-Output Differential Less Than 0.4V At 1A
Reverse Battery Protection
60V Load Dump Protection
-50V Reverse Transient Protection
Short Circuit Protection
Internal Thermal Overload Protection
Available In 3-Lead Plastic TO-220
Drops In Most lM2940 Sockets
Output Current In Excess Of 1A
Input-Output Differential Less Than 0.4V At 1A
Reverse Battery Protection
60V Load Dump Protection
-50V Reverse Transient Protection
Short Circuit Protection
Internal Thermal Overload Protection
Available In 3-Lead Plastic TO-220
Drops In Most lM2940 Sockets
LX8940 Typical Application
Small Headroom Battery Applications
High Efficiency Linear Regulators
Post Regulators For Switching Power Supplies
Green PC Monitor Applications
High Efficiency Linear Regulators
Post Regulators For Switching Power Supplies
Green PC Monitor Applications
LX8940 Connection Diagram
LX8940
PDF/DataSheet Download
- Datasheet: LX8940
- File Size: 140940 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
- ·LX802
- POLYFET [Polyfet RF Devices]
- SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR
- 38590 KB
- ·LX803
- POLYFET [Polyfet RF Devices]
- SILICON GATE ENHANCEMENT MODE RF POWER LDMOS TRANSISTOR
- 54889 KB
- ·LX8117-00
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
- ·LX8117-00CDD
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
- ·LX8117-00CDT
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
- ·LX8117-00CST
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
- ·LX8117-05
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
- ·LX8117-05CDD
- MICROSEMI [Microsemi Corporation]
- 0.8, 1 & 1.2A LOW DROPOUT POSITIVE REGULATORS
- 227408 KB
LX8940 Relative Products
LX8819
The LX8819 is a dual channel positive-voltage linear regulator. This dual regulator has one fixed output coupled with an adjustable output. Each channel features a low dropout and a high accuracy.The LX8819 provides designers with a flexible power management...
LX8817-25CDF
IC REG LDO DL 2.5A 2.5/ADJ SPAK7
LX8817
The LX8817 is a dual channel positive-voltage linear regulator. This dual regulator has one fixed output coupled with an adjustable output. Each channel features low-dropout and high accuracy.The LX8817 utilizes dual inputs that can be used as separate sourc...

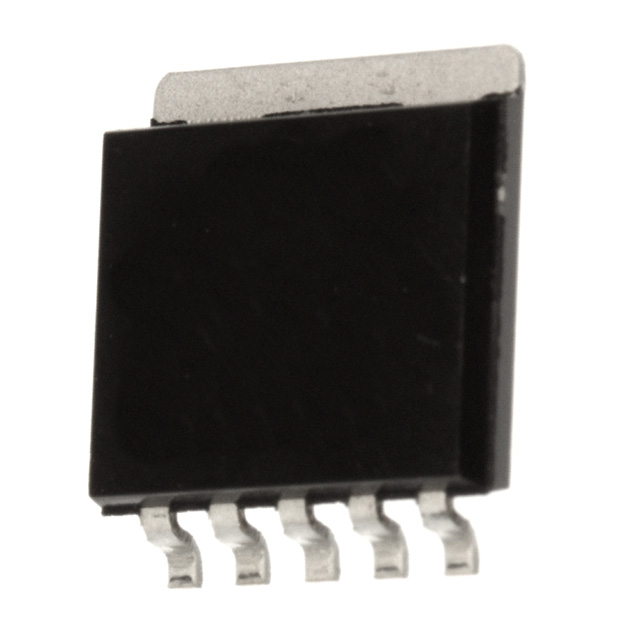

LX8816-04CDF
