Purchase LX9507, In-stock LX9507 From SeekIC.
Part Number: LX9507
Description: The LX9507 is an input-connector cable assembly that is used to connect Linfinity's standard line of b...
- Table of contents:
LX9507
-
Suppliers
DataSheet
General Description
LX9507 General Description
The LX9507 is an input-connector cable assembly that is used to connect Linfinity's standard line of backlight inverter products. The connector housing is interconnectable and compatible with PC boards mounted with the Molex* 53261 series 8-pin SMT header. The housing and pins are crimp-terminated to 6-inch (152.4mm) lengths of UL1061 AWG#26 wire. This cable assembly is designed to save users the job of obtaining housing, pin, wire, and crimp-tools in addition to the assembly of an evaluation board.
LX9507 Features
· Used for Interconnection of Backlight Inverter Connector (Molex 53261) to Power, Ground, and Control Signal
· Generous 6-inch (152.4mm) Lead Length to accommodate Most Applications
· Leads Color-Coded for Quick and Accurate Termination
· Wire is 300 Volt Rated to 80°C, PVC Insulated and is Stranded in a 7X #34 Configuration
LX9507
PDF/DataSheet Download
- Datasheet: LX9507
- File Size: 35044 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
- ·LX9501
- MICROSEMI [Microsemi Corporation]
- Input Cable Assembly
- 35604 KB
- ·LX9502
- MICROSEMI [Microsemi Corporation]
- OUTPUT CABLE ASSEMBLY
- 38045 KB
- ·LX9506
- MICROSEMI [Microsemi Corporation]
- Input Cable Assembly
- 34793 KB
LX9507 Relative Products

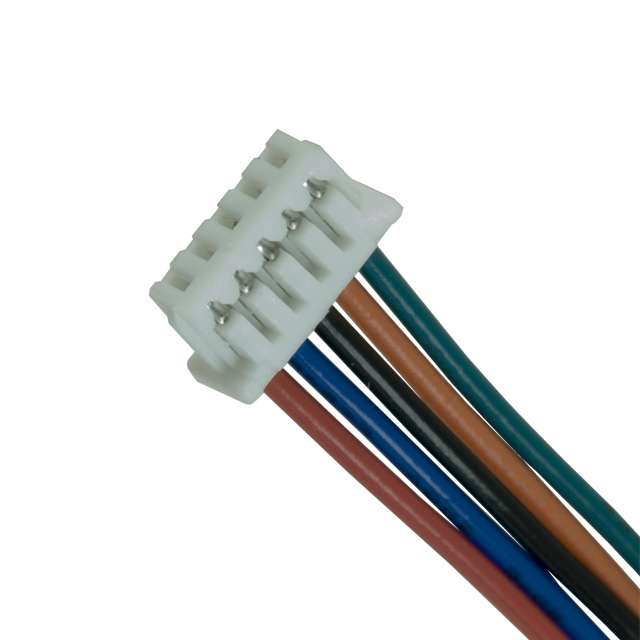

LX9506
The LX9506 is an input-connector cable assembly that is used to connect Linfinity's standard line of backlight inverter products. The connector housing is interconnectable and compatible with PC boards mounted with the Molex* 53261 series 5-pin SMT header. T...
LX9502
The LX9502 is an output connector cable specifically designed to interface the Linfinity backlight inverter to the Lucky Goldstar 5.6" LCD panel (LV56ND01A). This connector housing provides a clean mating connector with the JS connector # SM02(8.0) B-BHS-1D ...

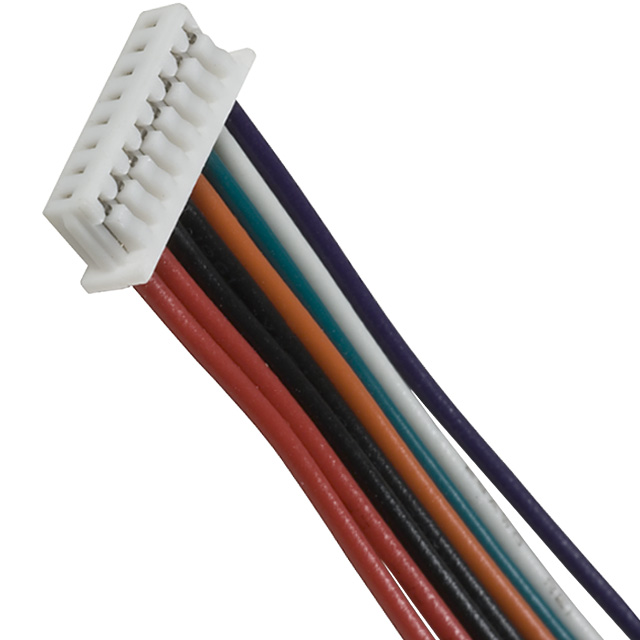

LX9501G
IC INPUT-CONN CABLE ASSEMBLY
LX9501
The LX9501 is an input-connector cable assembly that is used to connect Linfinity's standard line of backlight inverter products. The connector housingis interconnectable and compatible with PC boards mounted with the Molex* 53261 series 8-pin SMT header. Th...
LX8941CP
IC REG LDO POS ADJ OUT TO220-5
LX8941CDD
IC REG LDO POS ADJ VOLT TO263-5
