General Description
LXT381 General Description
The LXT381 is an octal short haul analog Line Interface Unit for ITU G.703 2.048 Mbit/sec. transmission systems. It incorporates eight independent receivers and eight independent transmitters in a single LQFP-144 or PBGA-160 package.
The transmit output drivers provide low impedance, constant during marks and spaces and constant pulse amplitudes independent of supply voltage variations.
The LXT381 may be configured for unbalanced 75Ω or for balanced 120Ω systems without external component changes in the transmit section. The transmit return loss performance exceeds latest ETSI return loss recommendations such as ETS 300166.
The LXT381 features a differential data receiver architecture with high noise interference margin. The receivers use peak detection and a variable threshold for reliable data recovery down to 500 mV or up to 12 dB of cable attenuation.
Each receiver incorporates an analog Loss Of Signal (LOS) processor that meets latest ITU G.775 standard.
The fast power down mode of all transmitters allows the implementation of Hitless Protection Switching (HPS) application without the use of relays.
LXT381 Maximum Ratings
|
Parameter |
SYMBOL |
Min. |
Max. |
Unit |
| DC supply voltage |
Vcc0, Vcc1, Tvcc 0- 7 |
-0.5 |
4.0 |
V |
| DC supply voltage |
Vccio0, Vccio1, |
-0.5 |
7.0 |
V |
| Input voltage on any digital pin |
Vin |
GND-0.5 GND-0.5 |
VCCIO0 + 0.5 VCCIO1 + 0.5 |
V V |
| Input voltage on RTIP, RRING1 |
Vin |
GND-0.5 |
VCC0 + 0.5 VCC1 + 0.5 |
V |
| ESD voltage on any Pin 2 |
Vin |
2000 |
- |
V |
| Transient latch-up current on any pin |
Iin |
- |
100 |
mA |
| Input current on any digital pin 3 |
Iin |
-10 |
10 |
mA |
| DC input current on TTIP, TRING 3 |
Iin |
±100 |
mA | |
| DC input current on RTIP, RRING 3 |
Iin |
- |
±100 |
mA |
| Storage temperature |
TSTOR |
-65 |
+150 |
|
| Maximum package power dissipation |
PP |
850 |
mW | |
| Thermal resistance, junction to ambient, 144 pin LQFP package |
28 |
/W | ||
| Thermal resistance, junction to ambient, 160 pin PBGA package |
|
|
28 |
/W |
Caution: Functional operation under these conditions is not implied.
Caution: Exposure to maximum rating conditions for extended periods may affect device reliability.
1. Referenced to ground.
2. Human body model.
3. Constant input current.
LXT381 Features
· Octal E1 short haul line interface per ITU G.703
· Single rail supply voltage of 3.3V with 5V I/O capability
· Low power consumption of <100 mW per channel (typ.)
· 75Ω/120Ω TX operation without component changes
· Transmit return loss complies with ETSI ETS 300 166
· Hitless Protection Switching (HPS)
· Driver short circuit current limiter (<50 mA RMS)
· Differential receiver with 15dB of signal to noise interference margin
· Data recovery with no need for external reference clock
· Analog LOS detection per ITU G.775
· Simple hardware control mode
· JTAG Boundary Scan test port per IEEE 1149.4
· Small footprint 144 pin LQFP or 160 pin PBGA package
· Single rail supply voltage of 3.3V with 5V I/O capability
· Low power consumption of <100 mW per channel (typ.)
· 75Ω/120Ω TX operation without component changes
· Transmit return loss complies with ETSI ETS 300 166
· Hitless Protection Switching (HPS)
· Driver short circuit current limiter (<50 mA RMS)
· Differential receiver with 15dB of signal to noise interference margin
· Data recovery with no need for external reference clock
· Analog LOS detection per ITU G.775
· Simple hardware control mode
· JTAG Boundary Scan test port per IEEE 1149.4
· Small footprint 144 pin LQFP or 160 pin PBGA package
LXT381 Typical Application
· Synchronous Digital Hierarchy (SDH) E1 tributary interfaces
· Public switching trunk line interfaces
· Digital Access Cross Connects (DACS)
· Microwave transmission systems
· Public switching trunk line interfaces
· Digital Access Cross Connects (DACS)
· Microwave transmission systems

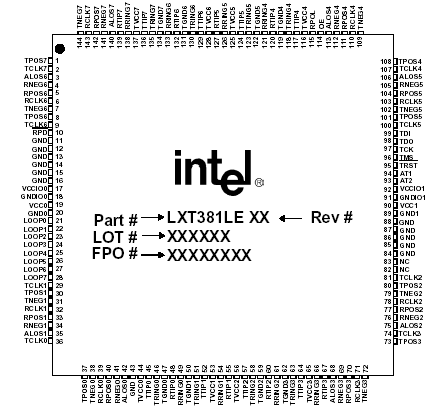

LXT381 Connection Diagram
