Part Number: M-986-2A1
Description: The M-986-2A1 dual channel MF Transceiver contains all the logic necessary to transmit and receive (No...
- Table of contents:
M-986-2A1
-
Suppliers
DataSheet
General Description
M-986-2A1 General Description
The M-986-2A1 dual channel MF Transceiver contains all the logic necessary to transmit and receive (North American) CCITT Region 1 multifrequency signals on one integrated circuit (IC).
Operating with a 20.48 MHz crystal, the M-986 is capable of providing a direct digital interface to a mlaw or A-law encoded PCM digital input. Each channel can be connected to an analog source using a coderdecoder (codec) as shown in the Block Diagram below.
The M-986 is configured and controlled through an integral coprocessor port.
M-986-2A1 Maximum Ratings
| Supply voltage range, VCC | -0.3 V to 7 V |
| Input voltage range | -0.3 V to 15 V |
| Output voltage range | -0.3 V to 15 V |
| Ambient air temperature range | 0 to 150 |
| Storage temperature range | -45 to 150 |
M-986-2A1 Features
• Direct A-Law or -Law PCM digital input
• 2.048 Mb/s clocking
• Operates with standard codecs for analog interfacing
• Microprocessor read/write interface
• Binary or 2-of-6 data formats
• Dual-channel
• 5 volt power
• 2.048 Mb/s clocking
• Operates with standard codecs for analog interfacing
• Microprocessor read/write interface
• Binary or 2-of-6 data formats
• Dual-channel
• 5 volt power
M-986-2A1 Typical Application
• Test equipment
• Trunk adapters
• Paging terminals
• Traffic recorders
• PBXs
• Trunk adapters
• Paging terminals
• Traffic recorders
• PBXs

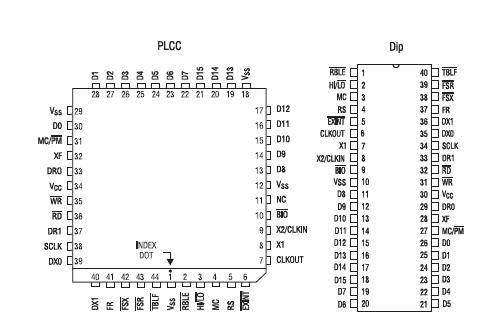

M-986-2A1 Connection Diagram
M-986-2A1
