Part Number: M27128A
Description: The M27128A is a 131,072 bit UV erasable and electrically programmable memory EPROM. It is organized as 16,384 words by...
- Table of contents:
M27128A
-
Suppliers
DataSheet
General Description
M27128A General Description
The M27128A is a 131,072 bit UV erasable and electrically programmable memory EPROM. It is organized as 16,384 words by 8 bits.
The M27128A is housed in a 28 Pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
M27128A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature grade 1 |
0 to 70 |
°C |
|
TBIAS |
Temperature Under Bias grade 1 |
10 to 80 |
°C |
|
TSTG |
Storage Temperature |
65 to 125 |
°C |
|
VIO |
Input or Output Voltages |
0.6 to 6.25 |
V |
|
VCC |
Supply Voltage |
0.6 to 6.25 |
V |
|
VA9 |
A9 Voltage |
0.6 to 13.5 |
V |
|
VPP |
Program Supply |
0.6 to 14 |
V |
M27128A Features
FAST ACCESS TIME: 200ns
EXTENDED TEMPERATURE RANGE
SINGLE 5 V SUPPLY VOLTAGE
LOW STANDBY CURRENT: 40mA max
TTL COMPATIBLE DURING READ and
PROGRAM
FAST PROGRAMMING ALGORITHM
ELECTRONIC SIGNATURE
PROGRAMMING VOLTAGE: 12V
EXTENDED TEMPERATURE RANGE
SINGLE 5 V SUPPLY VOLTAGE
LOW STANDBY CURRENT: 40mA max
TTL COMPATIBLE DURING READ and
PROGRAM
FAST PROGRAMMING ALGORITHM
ELECTRONIC SIGNATURE
PROGRAMMING VOLTAGE: 12V

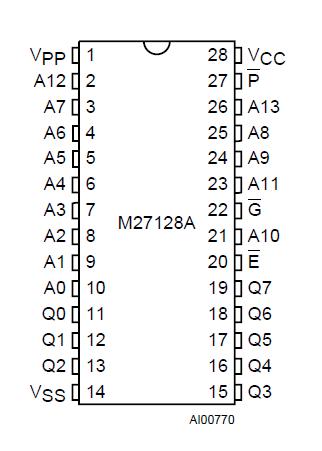

M27128A Connection Diagram
M27128A
PDF/DataSheet Download
- Datasheet: M27128A
- File Size: 109999 KB
- Manufacturer: INTEL [Intel Corporation]
- Click here to Download
