M27512

Features:

 FAST ACCESS TIME: 200ns
EXTENDED TEMPERATURE RANGE
SINGLE 5V SUPPLY VOLTAGE
LOW STANDBY CURRENT: 40mA max
TTL COMPATIBLE DURING READ and
    PROGRAM
FAST PROGRAMMING ALGORITHM
ELECTRONIC SIGNATURE
PROGRAMMING VOLTAGE: 12V

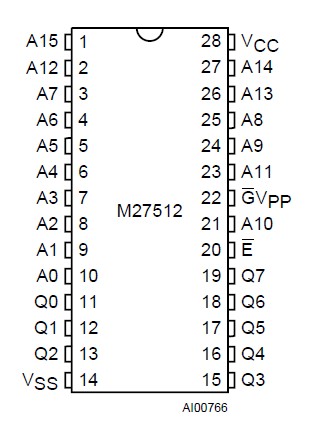

Pinout




Specifications

Symbol	Parameter	Value	Unit
TA	Ambient Operating Temperature     Grade 1                                   Grade 6	0 to 70 40 to 85
TBIAS	Temperature Under Bias            Grade 1                                   Grade 6	10 to 80 50 to 95
TSTG	Storage Temperature	65 to 125
VIO	Input or Output Voltages	0.6 to 6.5	V
VCC	Supply Voltage	0.6 to 6.5	V
VA9	A9 Voltage	0.6 to 13.5	V
VPP	Program Supply	0.6 to 14	V

Description

The M27512 is a 524,288 bit UV erasable and electrically programmable memory EPROM. It is organized as 65,536 words by 8 bits.

The M27512 is housed in a 28 Pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
