General Description
M2764A General Description
The M2764A is a 65,536 bit UV erasable and electrically programmable memory EPROM. It is organized as 8,192 words by 8 bits.
The M27C64A is housed in a 28 pin Window Ceramic Frit-Seal Dual-in-Line package. The transparent lid allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
M2764A Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit | |
| TA | Ambient Operating Temperature | grade 1 grade 6 |
0 to 70 |
|
|
40 to 85 | ||||
| TBIAS | Temperature Under Bias | grade 1 grade 6 |
10 to 80 |
|
|
50 to 95 | ||||
| TSTG | Storage Temperature |
65 to 125 |
||
| VIO | Input or Output range |
65 to 125 |
V | |
| VCC | Supply Voltage |
65 to 125 |
V | |
| VA9 | A9 Voltage |
65 to 13.5 |
V | |
| VPP | Program Supply |
0.6 to 14 |
V | |
Note: Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the SGS-THOMSON SURE Program and other relevant quality documents.
M2764A Features
·FAST ACCESS TIME: 180ns
·EXTENDED TEMPERATURE RANGE
·SINGLE 5V SUPPLY VOLTAGE
·LOW STANDBY CURRENT: 35mA max
·TTL COMPATIBLE DURING READ and PROGRAM
·FAST PROGRAMMING ALGORITHM
·ELECTRONIC SIGNATURE
·PROGRAMMING VOLTAGE: 12V
·EXTENDED TEMPERATURE RANGE
·SINGLE 5V SUPPLY VOLTAGE
·LOW STANDBY CURRENT: 35mA max
·TTL COMPATIBLE DURING READ and PROGRAM
·FAST PROGRAMMING ALGORITHM
·ELECTRONIC SIGNATURE
·PROGRAMMING VOLTAGE: 12V

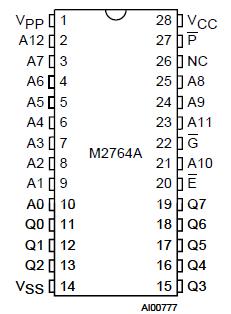

M2764A Connection Diagram
M2764A
