Purchase M27C1024, In-stock M27C1024 From SeekIC.
MFG:ST Package Cooled:PLCC
Part Number: M27C1024
MFG: ST
Package Cooled: PLCC
Description: The M27C1024 is a 1Mbit EPROM offered in the two ranges UV (ultravioleterase) and OTP (one time progra...
- Table of contents:
M27C1024
-
Suppliers
DataSheet
General Description
M27C1024 General Description
The M27C1024 is a 1Mbit EPROM offered in the two ranges UV (ultravioleterase) and OTP (one time programmable).It is ideally suited for micro-processorsystems requiring large data or program storage and is organized as 65,536 words of 16 bits.
The FDIP40W (windowceramicfrit-sealpackage)has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern.A new pattern can then be written to the device by following the programming procedure.
For application where the content is programmed only one time and erasure is not required,the M27C1024 is offered in PDIP40,PLCC44 and TSOP40(10x14mm)packages.
M27C1024 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | AmbientOperatingTemperature(3) | 40to125 | °C |
| TBIAS | TemperatureUnderBias | 50to125 | °C |
| TSTG | StorageTemperature | 65to150 | °C |
| VIO(2) | InputorOutputVoltages(exceptA9) | 2to7 | V |
| VCC | SupplyVoltage | 2to7 | V |
| VA9(2) | A9Voltage | 2to13.5 | V |
| VPP | ProgramSupplyVoltage | 2to14 | V |

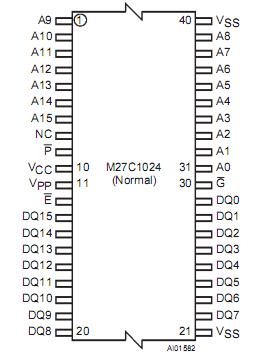

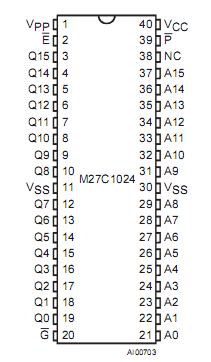

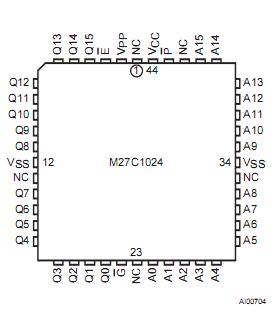

M27C1024 Connection Diagram
