Purchase M27C256B-10F7X, In-stock M27C256B-10F7X From SeekIC.
Part Number: M27C256B-10F7X
Description: The M27C256B is a 256 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time p...
- Table of contents:
M27C256B-10F7X
-
Suppliers
DataSheet
General Description
M27C256B-10F7X General Description
The M27C256B is a 256 Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for mi- croprocessor systems and is organized as 32,768 by 8 bits.
The FDIP28W (window ceramic frit-seal package) has a transparent lid which allows the user to ex- pose the chip to ultraviolet light to erase the bit pat- tern. A new pattern can then be written to the device by following the programming procedure. For applications where the content is programmed only one time and erasure is not required, the M27C256B is offered in PDIP28, PLCC32 and TSOP28 (8 x 13.4 mm) packages.
M27C256B-10F7X Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature (3) | 40 to 125 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VIO (2) | Input or Output Voltage (except A9) | 2 to 7 | V |
| VCC | Supply Voltage | 2 to 7 | V |
| VA9 (2) | A9 Voltage | 2 to 13.5 | V |
| VPP | Program Supply Voltage | 2 to 14 | V |
M27C256B-10F7X Features
5V ± 10% SUPPLY VOLTAGE in READ
OPERATION
ACCESS TIME: 45ns
LOW POWER CONSUMPTION:
Active Current 30mA at 5MHz
Standby Current 100µA
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMING TIME: 100µs/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: 8Dh
OPERATION
ACCESS TIME: 45ns
LOW POWER CONSUMPTION:
Active Current 30mA at 5MHz
Standby Current 100µA
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMING TIME: 100µs/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: 8Dh

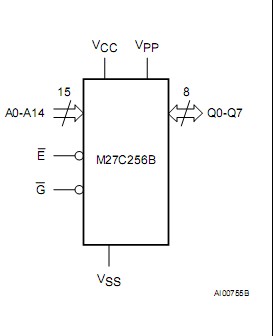

M27C256B-10F7X Connection Diagram
M27C256B-10F7X
PDF/DataSheet Download
- Datasheet: M27C256B-10F7X
- File Size: 150649 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·M27128A
- INTEL [Intel Corporation]
- AVDVANCED 64K (8K x 8) UV ERASABLE PROM
- 109999 KB
- ·M27128A-1F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-1F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-20F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-20F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-2F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
M27C256B-10F7X Relative Products

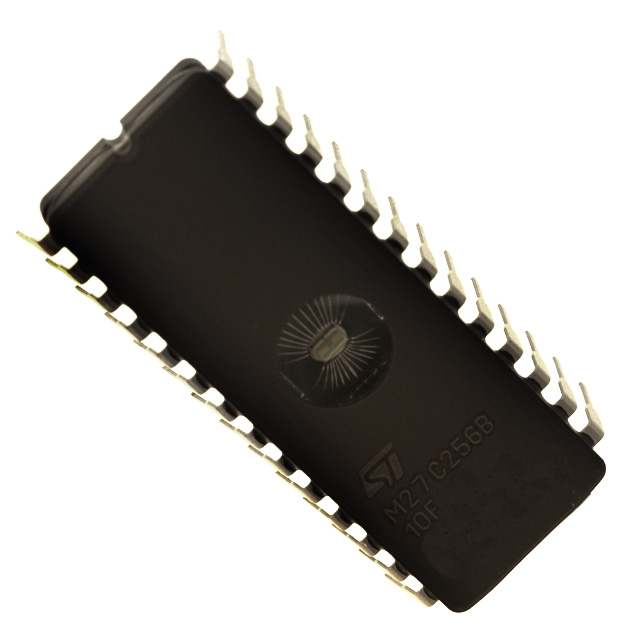

M27C256B-10F1
