General Description
M27C400 General Description
The M27C400 is an 4 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as either 512 Kwords of 8 bit or 256 Kwords of 16 bit. The pin-out is compatible with the most common 8 Mbit Mask ROM.
The FDIP40W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern.
A new pattern can then be written rapidly to the device by following the programming procedure.
For applications where the content is programmed only one time and erasure is not required, the M27C400 is offered in PDIP40 package.
M27C400 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature (2) | 40 to 125 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VIO(2) | Input or Output Voltage (except A9) | 2 to 7 | V |
| VCC | Supply Voltage | 2 to 7 | V |
| VA9(2) | A9 Voltage | 2 to 13.5 | V |
| VPP | Program Supply Voltage | 2 to 14 | V |
1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
2. Minimum DC voltage on Input or Output is 0.5V with possible undershoot to 2.0V for a period less than 20ns. Maximum DC voltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period less than 20ns.
3. Depends on range.
M27C400 Features
5V ± 10% SUPPLY VOLTAGE in READ OPERATION
ACCESS TIME: 55ns
BYTE-WIDE or WORD-WIDE CONFIGURABLE
4 Mbit MASK ROM REPLACEMENT
LOW POWER CONSUMPTION
Active Current 70mA at 8MHz
Stand-by Current 100A
PROGRAMMING VOLTAGE: 12.5V ± 0.25V
PROGRAMMING TIME: 100s/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: B8h
ACCESS TIME: 55ns
BYTE-WIDE or WORD-WIDE CONFIGURABLE
4 Mbit MASK ROM REPLACEMENT
LOW POWER CONSUMPTION
Active Current 70mA at 8MHz
Stand-by Current 100A
PROGRAMMING VOLTAGE: 12.5V ± 0.25V
PROGRAMMING TIME: 100s/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: B8h

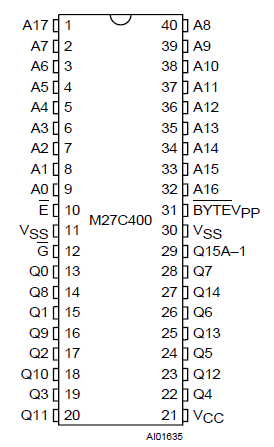

M27C400 Connection Diagram
M27C400
PDF/DataSheet Download
- Datasheet: M27C400
- File Size: 124277 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·M27128A
- INTEL [Intel Corporation]
- AVDVANCED 64K (8K x 8) UV ERASABLE PROM
- 109999 KB
- ·M27128A-1F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-1F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 16K 2K x 8 UV EPROM
- 93967 KB
- ·M27128A-20F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-20F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-25F6
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
- ·M27128A-2F1
- STMICROELECTRONICS [STMicroelectronics]
- NMOS 128K 16K x 8 UV EPROM
- 109999 KB
M27C400 Relative Products
M27C322
The M27C322 is a 32 Mbit EPROM offered in the UV range (ultra violet erase). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as 2 MWords of 16 bit. The pin-out is compatible with a 32 Mbit Mask ROM.The...
M27C320
The M27C320 is a 32 Mbit EPROM offered in the OTP range (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as either 4 MWords of 8 bit or 2 MWords of 16 bit. The pin- out is comp...

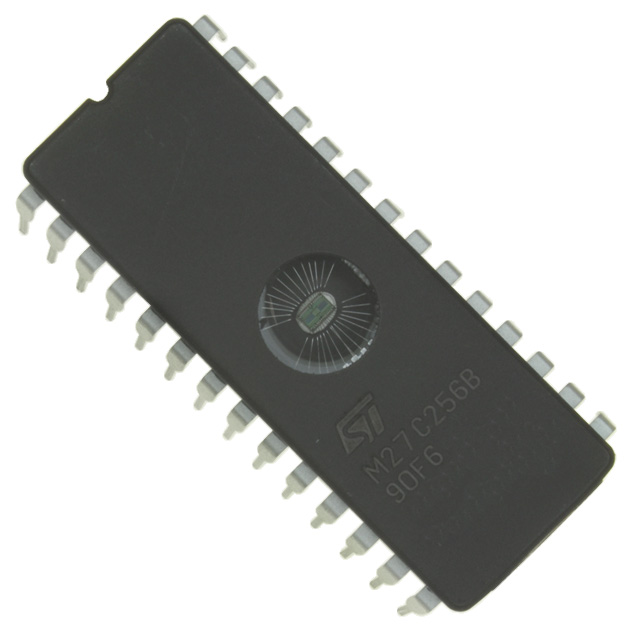

M27C256B-90F6
