Part Number: M27C516



MFG: ST

Package Cooled: PLCC



Description: TheM27C516isa 512KbitEPROMofferedin theOTP range (one time programmable).It is ideallyuited for icroprocessorsystems re...


Urgent Purchase

M27C516 General Description


TheM27C516isa 512KbitEPROMofferedin theOTP range (one time programmable).It is ideallyuited for icroprocessorsystems requiring largedata or program storage and is organized as32,768wordsof16 bits.
TheM27C516isofferedinaPLCC44andTSOP40(10x 14mm)packages.

M27C516 Maximum Ratings

Symbol
Parameter
Value
Unit
TA
Ambient Operating Temperature (3)
-40 to 125
TBIAS
Temperature Under Bias
50 to 125
TSTG
Storage Temperature
65 to 150
VIO(2)
nput or Output Voltages (except A9)
2 to 7
V
VCC
Supply Voltage
2 to 7
V
VA9(2)
A9 Voltage
2 to 13.
V
VPP
Program Supply Voltage
2 to 14
V

M27C516 Features

5V ± 10% SUPPLYVOLTAGEin READOPERATION
FASTACCESS TIME: 35ns
LOW POWER CONSUMPTION:
   Active Current 30mA at 5MHz
   Stand-byCurrent 100mA
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMINGTIME: 100ms/word (typical)
ELECTRONIC SIGNATURE
   Manufacturer Code: 0020h
  Device Code: 000Fh

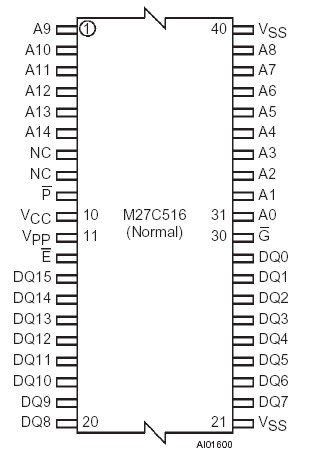

M27C516 Connection Diagram

M27C516 Connection Diagram
