Purchase M27C800, In-stock M27C800 From SeekIC.
MFG:ST D/C:08+
Part Number: M27C800
MFG: ST
D/C: 08+
Description: The M27C800 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is...
- Table of contents:
M27C800
-
Suppliers
DataSheet
General Description
M27C800 General Description
The M27C800 is an 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as either 1 Mwords of 8 bit or 512 Kwords of 16 bit. The pin-out is compatible with the most common 8 Mbit Mask ROM.
The FDIP42W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern.
A new pattern can then be written rapidly to the device by following the programming procedure.For applications where the content is programmed only one time and erasure is not required, the M27C800 is offered in PDIP42, PLCC44 and SO44 packages.
M27C800 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature (2) | 40 to 125 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VIO(2) | Input or Output Voltage (except A9) | 2 to 7 | V |
| VCC | Supply Voltage | 2 to 7 | V |
| VA9(2) | A9 Voltage | 2 to 13.5 | V |
| VPP | Program Supply Voltage | 2 to 14 | V |
1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditions above those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
2. Minimum DC voltage on Input or Output is 0.5V with possible undershoot to 2.0V for a period less than 20ns. Maximum DC voltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period less than 20ns.
3. Depends on range.
M27C800 Features
5V ± 10% SUPPLY VOLTAGE in READ OPERATION
ACCESS TIME: 50ns
BYTE-WIDE or WORD-WIDE CONFIGURABLE
8 Mbit MASK ROM REPLACEMENT
LOW POWER CONSUMPTION
Active Current 70mA at 8MHz
Stand-by Current 50A
PROGRAMMING VOLTAGE: 12.5V ± 0.25V
PROGRAMMING TIME: 50s/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: B2h
ACCESS TIME: 50ns
BYTE-WIDE or WORD-WIDE CONFIGURABLE
8 Mbit MASK ROM REPLACEMENT
LOW POWER CONSUMPTION
Active Current 70mA at 8MHz
Stand-by Current 50A
PROGRAMMING VOLTAGE: 12.5V ± 0.25V
PROGRAMMING TIME: 50s/word
ELECTRONIC SIGNATURE
Manufacturer Code: 20h
Device Code: B2h

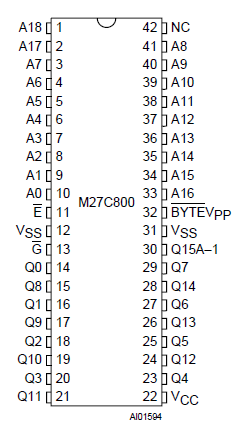

M27C800 Connection Diagram
M27C800
