General Description
M27V102 General Description
The M27W102 is a low voltage 1 Mbit EPROM offeredin the two rangesUV (ultra violet erase)and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or programstorageand is organized as 65,536words by 16 bits.
The M27V102 operates in the read mode with a supply voltage as low as 3V. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.
The FDIP40W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
M27V102 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| TA | Ambient Operating Temperature (3) | 40 to 125 | °C |
| TBIAS | Temperature Under Bias | 50 to 125 | °C |
| TSTG | Storage Temperature | 65 to 150 | °C |
| VIO(2) | Input or Output Voltage (except A9) | 2 to 7 | V |
| VCC | Supply Voltage | 2 to 7 | V |
| VA9(2) | A9 Voltage | 2 to 13.5 | V |
| VPP |
Program Supply Voltage | 2 to 14 | V |
1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table AbsoluteMaximum Ratings"may cause permanent damage to the device. These are stress ratings only and operation of the device atthese or any other conditions above those indicated in the Operating sections of this specification is not i mplied. Exposure to Absolute Maximum Rating conditions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant quality documents.
2. Minimum DC voltage on Input or Output is 0.5V with possible undershoot to 2.0V for a period less than 20ns. Maximum DC voltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period less than 20ns.
3. Depends on range.
M27V102 Features
LOW VOLTAGEREAD OPERATION: 3V to 3.6V
FASTACCESS TIME: 90ns
LOW POWER CONSUMPTION:
Active Current 15mAat 5MHz
Standby Current 20 A
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMINGTIME: 100ms/byte (typical)
ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code: 008Ch
FASTACCESS TIME: 90ns
LOW POWER CONSUMPTION:
Active Current 15mAat 5MHz
Standby Current 20 A
PROGRAMMING VOLTAGE: 12.75V ± 0.25V
PROGRAMMINGTIME: 100ms/byte (typical)
ELECTRONIC SIGNATURE
Manufacturer Code: 0020h
Device Code: 008Ch

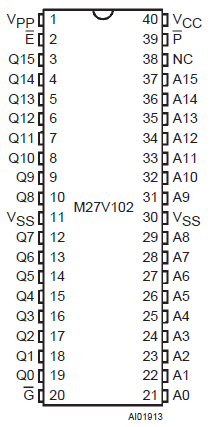

M27V102 Connection Diagram
M27V102
PDF/DataSheet Download
- Datasheet: M27V102
- File Size: 118913 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
