M27W800

Features: `2.7V to 3.6V LOW VOLTAGE in READ OPERATION` ACCESS TIME: 90ns at VCC = 3.0V to 3.6V 100ns at VCC = 2.7V to 3.6V` BYTE-WIDE or WORD-WIDE CONFIGURABLE` 8 Mbit MASK ROM REPLACEMENT` LOW POWER CONSUMPTION Active Current 30mA at 8MHz Standby Current 15µA` PROGRAMMING VOLTAGE: 12.5V...

product image

M27W800 Picture
SeekIC No. : 004404273 Detail

M27W800: Features: `2.7V to 3.6V LOW VOLTAGE in READ OPERATION` ACCESS TIME: 90ns at VCC = 3.0V to 3.6V 100ns at VCC = 2.7V to 3.6V` BYTE-WIDE or WORD-WIDE CONFIGURABLE` 8 Mbit MASK ROM REPLACEMENT` LOW PO...

floor Price/Ceiling Price

Part Number:
M27W800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`2.7V to 3.6V LOW VOLTAGE in READ OPERATION
` ACCESS TIME:
   90ns at VCC = 3.0V to 3.6V
   100ns at VCC = 2.7V to 3.6V
` BYTE-WIDE or WORD-WIDE CONFIGURABLE
` 8 Mbit MASK ROM REPLACEMENT
` LOW POWER CONSUMPTION
   Active Current 30mA at 8MHz
   Standby Current 15µA
` PROGRAMMING VOLTAGE: 12.5V ± 0.25V
` PROGRAMMING TIME: 50µs/word
` ELECTRONIC SIGNATURE
   Manufacturer Code: 20h
   Device Code: B2h



Pinout

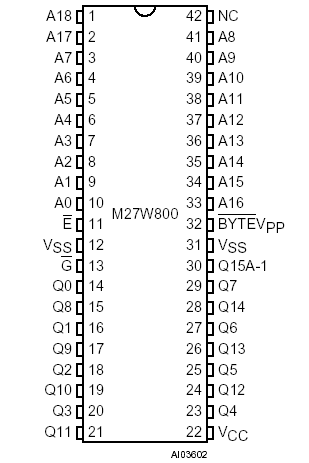

  Connection Diagram


Specifications

Symbol
Parameter
Rating
Unit
TA
Ambient Operating Temperature (3)
40 to 125
TBIAS
Temperature Under Bias)
50 to 125
TSTG
Storage Temperature
65 to 150
VIO(2)
Input or Output Voltage (except A9)
2 to 7
V
VCC
Supply Voltage
2 to 7
V
VA9(2)
A9 Voltage
2 to 13.5
V
VPP
Program Supply Voltage
2 to 14
V

Note: 1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "
             Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings
             only and operation of the device at these or any other conditions above those indicated in the
             Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating conditions
             for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and
            other relevant quality documents.
        2. Minimum DC voltage on Input or Output is 0.5V with possible undershoot to 2.0V for a period less
            than  20ns. Maximum DC voltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period
            less than 20ns.
       3. Depends on range.




Description

The M27W800 is a low voltage 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage. It is organised as either 1 Mbit words of 8 bit or 512 Kbit words of 16 bit. The pinout is compatible with a 8 Mbit Mask ROM.

The M27W800 operates in the read mode with a supply voltage as low as 2.7V. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.

The FDIP42W (window ceramic frit-seal package) has a transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written rapidly to the device by following the programming procedure.

For applications where the content is programmed only one time and erasure is not required, the M27W800 is offered in PDIP42 and PLCC44 package.
