General Description
M27W801 General Description
The M27W801 is a low voltage 8 Mbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems requiring large data or program storage and is organized as 1,048,576 by 8 bits.
The M27W801 operates in the read mode with a supply voltage as low as 2.7V at 40 to 85°C temperature range. The decrease in operating power allows either a reduction of the size of the battery or an increase in the time between battery recharges.
The FDIP32W (window ceramic frit-seal package) has a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
For applications where the content is programmed only one time and erasure is not required, the M27W801 is offered in PDIP32, PLCC32 and TSOP32 (8 x 20 mm) packages.
M27W801 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
TA |
Ambient Operating Temperature (3) |
40 to 125 |
°C |
|
TBIAS |
Temperature Under Bias |
50 to 125 |
°C |
|
TSTG |
Storage Temperature |
65 to 150 |
°C |
|
VIO(2) |
Input or Output Voltages |
2 to 7 |
V |
|
VCC |
Supply Voltage |
2to 7 |
V |
|
VA9(2) |
A9 Voltage |
2 to 13.5 |
V |
|
VPP |
Program Supply Voltage |
2 to 14 |
V |

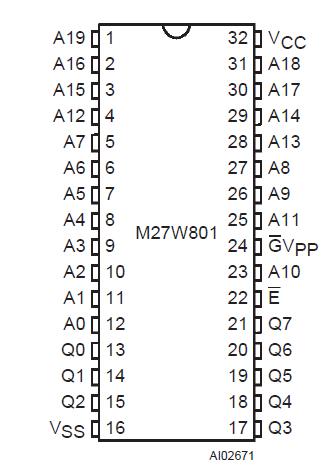

M27W801 Connection Diagram
M27W801
